TANKER SHIP CARGO WORK ESSENTIALS

COW ( CRUDE OIL WASHING) LINES FOR CARGO TANKS

COW ( CRUDE OIL WASHING) LINES FOR CARGO TANKS

OIL POLLUTION PREVENTION EQUIPMENTS (SOPEP )

OIL POLLUTION PREVENTION EQUIPMENTS (SOPEP )

CARGO TANK DOM  /  TANK OPENING FOR VISUAL INSPECTION AND MAN ENTRY

CARGO TANK DOM / TANK OPENING FOR VISUAL INSPECTION AND MAN ENTRY

WILDEN PUMP - AIR DRIVEN PUMP USED FOR OIL SPILL CONTAINMENT

WILDEN PUMP - AIR DRIVEN PUMP USED FOR OIL SPILL CONTAINMENT

COW MACHINE - DECK MOUNTED TYPE

COW MACHINE - DECK MOUNTED TYPE

BUNKER RECEIVING MANIFOLD

BUNKER RECEIVING MANIFOLD

BUNKER DAVIT - USED TO PICK UP THE BUNKER HOSES FOR CONNECTION ON MANIFOLDS

BUNKER DAVIT - USED TO PICK UP THE BUNKER HOSES FOR CONNECTION ON MANIFOLDS

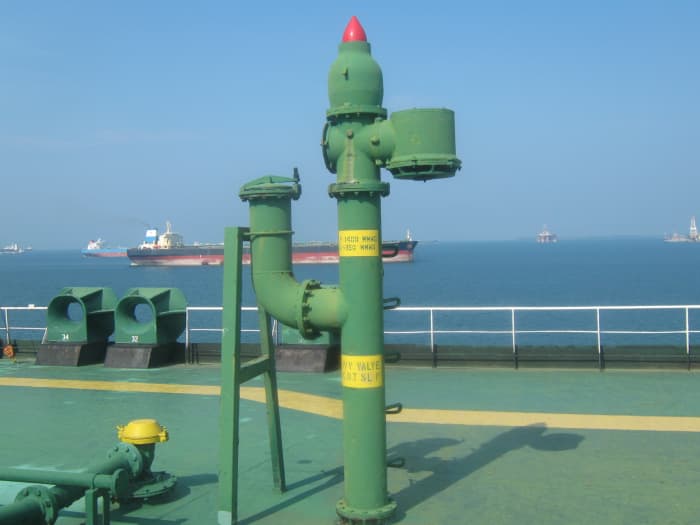

P/ V VALVE - TO RELIEF THE CARGO TANKS FROM PRESSURE / VACUUM CONDITIONS

P/ V VALVE - TO RELIEF THE CARGO TANKS FROM PRESSURE / VACUUM CONDITIONS

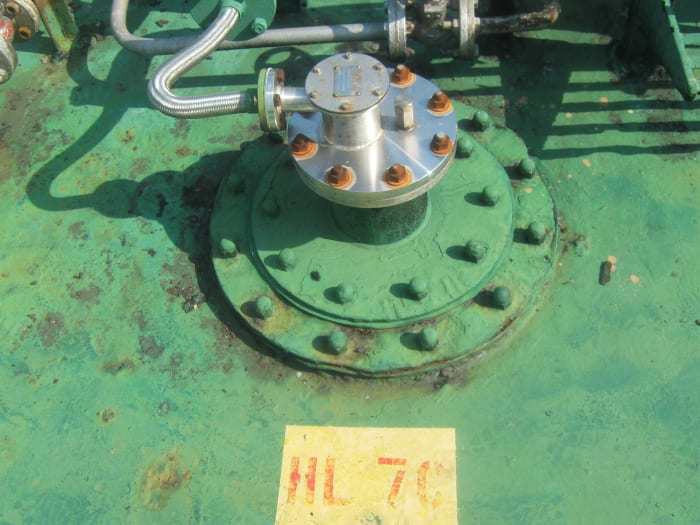

CARGO TANK HIGH LEVEL ALARM SENSORS - FOR WARNING THE OVER FILLING OF THE TANK

CARGO TANK HIGH LEVEL ALARM SENSORS - FOR WARNING THE OVER FILLING OF THE TANK

VAPOUR LOCK AND ULLAGE PORT - FOR MEASURING THE LIQUID  LEVEL / FREE SPACE IN CARGO TANKS ( SOUNDING & ULLAGING ) and SAMPLING  OF CARGO

VAPOUR LOCK AND ULLAGE PORT - FOR MEASURING THE LIQUID LEVEL / FREE SPACE IN CARGO TANKS ( SOUNDING & ULLAGING ) and SAMPLING OF CARGO

FIRE HYDRANTS - FIRE LINE / SEA WATER OUTLET FOR FIRE FIGHTING

FIRE HYDRANTS - FIRE LINE / SEA WATER OUTLET FOR FIRE FIGHTING

SHELTER BOX - FOR PROTECTION OF CREW DURING ROUGH WEATHER

SHELTER BOX - FOR PROTECTION OF CREW DURING ROUGH WEATHER

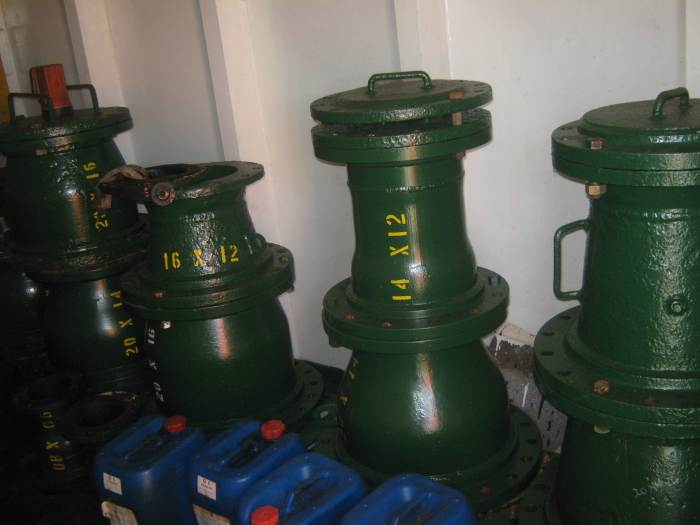

MANIFOLD REDUCERS - USED FOR ADJUSTING THE SIZE OF THE CARGO MANIFOLDS WITH THE CARGO TRANSFER HOSES

MANIFOLD REDUCERS - USED FOR ADJUSTING THE SIZE OF THE CARGO MANIFOLDS WITH THE CARGO TRANSFER HOSES

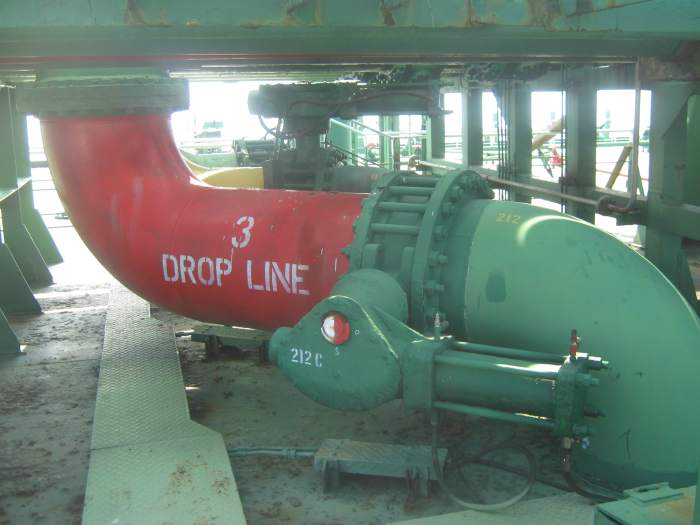

DROP LINES / VALVES - USED ONLY WHEN LOADING THE CARGO IN THE SHIP'S TANKS

DROP LINES / VALVES - USED ONLY WHEN LOADING THE CARGO IN THE SHIP'S TANKS

CARGO HOSE HANDLING DERRICK - USED FOR LIFTING THE CARGO HOSES , REDUCERS ETC. FOR CONNECTION AND SUPPORT DURING LOADING / DISCHARGING

CARGO HOSE HANDLING DERRICK - USED FOR LIFTING THE CARGO HOSES , REDUCERS ETC. FOR CONNECTION AND SUPPORT DURING LOADING / DISCHARGING

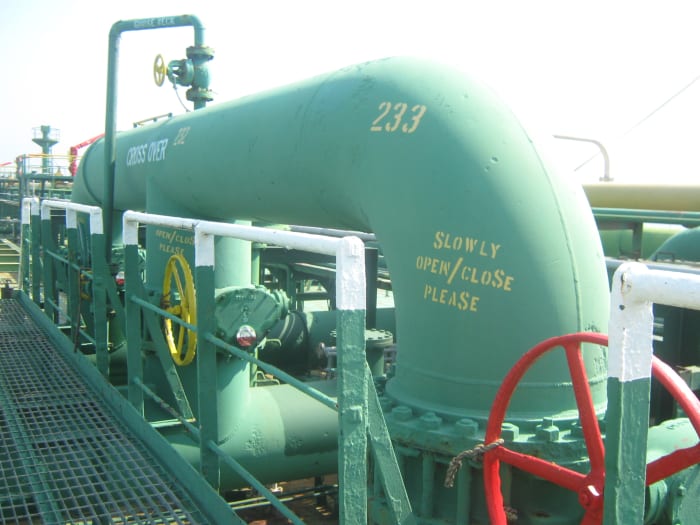

DESK CROSS OVER LINE / VALVES - USED FOR INTERCHANGING THE CARGO MANIFOLD AND LINES ON DECK TO FACILITATE SEGREGATION DURING LOADING / DISCHARGING

DESK CROSS OVER LINE / VALVES - USED FOR INTERCHANGING THE CARGO MANIFOLD AND LINES ON DECK TO FACILITATE SEGREGATION DURING LOADING / DISCHARGING

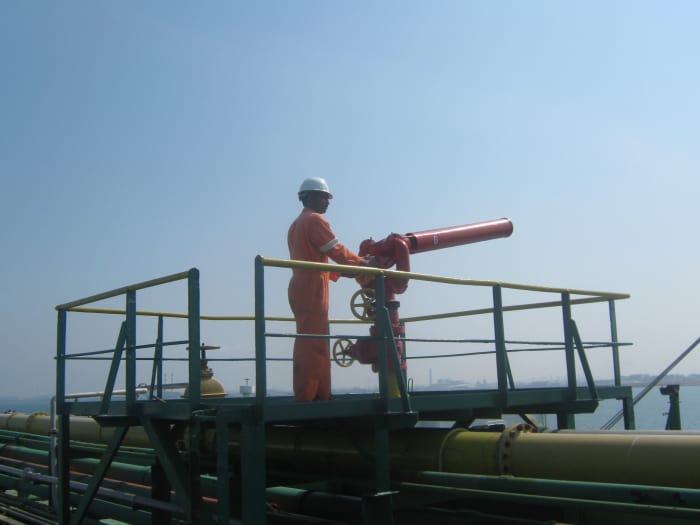

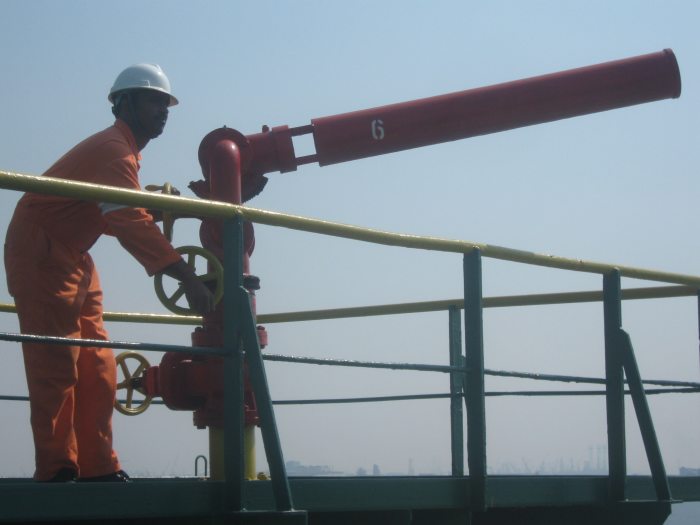

FOAM / FIRE MONITORS - USED FOR PROTECTION AND FIRE FIGHTING OF THE CARGO TANK AREAS USING THE FIXED FOAM SYSTEM.

FOAM / FIRE MONITORS - USED FOR PROTECTION AND FIRE FIGHTING OF THE CARGO TANK AREAS USING THE FIXED FOAM SYSTEM.

FOAM / FIRE MONITORS - USED FOR PROTECTION AND FIRE FIGHTING OF THE CARGO TANK AREAS USING THE FIXED FOAM SYSTEM.

FOAM / FIRE MONITORS - USED FOR PROTECTION AND FIRE FIGHTING OF THE CARGO TANK AREAS USING THE FIXED FOAM SYSTEM.

DECK MOUNTED COW MACHINES -  USED FOR COW ( CRUDE OIL WASHING) OF THE TANKS

DECK MOUNTED COW MACHINES - USED FOR COW ( CRUDE OIL WASHING) OF THE TANKS

IMPORTANT TANKER PUBLICATIONS

DEAR READERS

The above shown photos had been captured when I was serving on an Oil Tanker ( VLCC ) ship.

These photos have helped me enormously during my study tenure and service life as well. The thought behind putting all these photos on large scale view here, is to ensure the reader's convenience in reading and understanding the ship structure , cargo equipments and essentials etc. and at the same time clearly visualize and recognize them so that there is no room left for any confusion / misunderstanding. While doing my studies I practically realized that these well addressed topics are not so easily and readily available to the marine students and the new entrants to the industry or to the existing seafarers or outsiders who are interested in learning these things. Hence here I take the opportunity to put focus on these thing with the help of the above visuals & images. I hope all will be surely benefited from this hub. If so, please do leave your comments / suggestions below , to help me achieve the goal of producing this hub.

CARGO TANK DOME

CARGO TANK DOME

CARGO TANK DOME / HATCH COVER

This is called the Cargo Tank Dome , more pronounced as hatch cover . It is the dome shaped opening in to the cargo tank from the upper deck. It has got a cover on top which can be slide opened/ closed and locked watertight by means of the attached locking arrangement. When all the cargo from the tank has been discharged, the tanks are washed, stripped & purged by inert gas and when the hydrocarbon gas contents fall below the 1%of LEL ( Lower Explosive Limit) , the cargo tanks are then gasfreed and prepared for man entry. Man entry is done in the cargo tank through these tank domes. There is a ladder welded to facilitate the man entry in to the tank. However the safety checklists and atmosphere checks must be carefully carried out and results to be properly logged before making man entry in the cargo tanks.

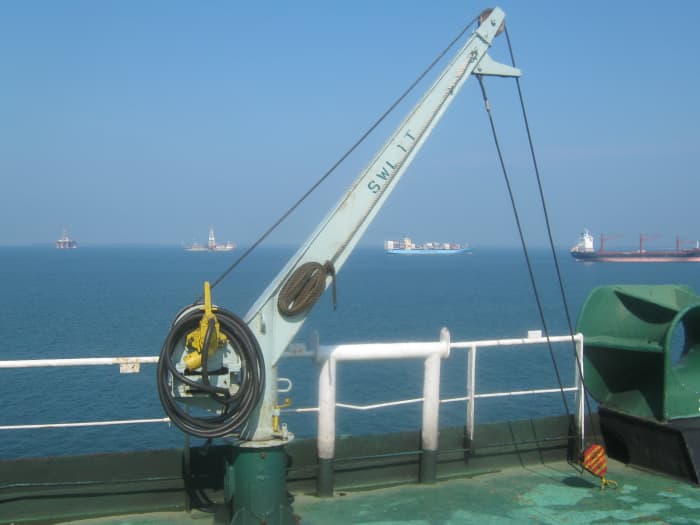

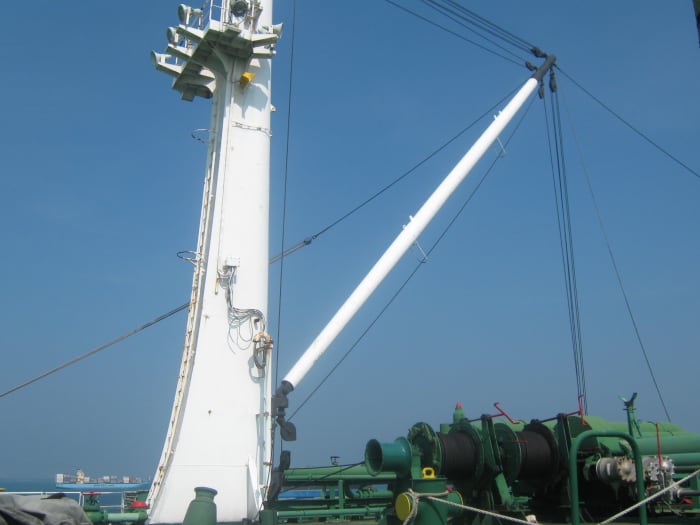

HOSE HANDLING CARGO GEAR - DERRICK

HOSE HANDLING CARGO GEAR - DERRICK

CARGO HOSE HANDLING GEAR

This is a simple derrick which is utilized for the cargo hose handling purposes.However many modern tankers have hose handling cranes instead of the derricks. Sometimes the vessels are fitted with two hose handling gears i.e. one for the each side manifold and sometimes there is only one crane fitted for hose handling purposes depending upon the ship's sizes, prevailing rules and owners requirements etc. These gears have well specified and so constructed as to provide sufficient outreach towards ship's side to facilitate easy lifting & lowering of the hoses, reducers etc. These gears are designed for sufficient SWL ( Safe Working Loads ). The user and technical manuals are provided for all these equipments for users reference.

SOPEP EQUIPMENTS FOR OIL POLLUTION PREVENTION

SOPEP EQUIPMENTS

SOPEP EQUIPMENTS

SOPEP EQUIPMENTS ONBOARD SHIP

These are the SOPEP ( Shipboard Oil Pollution Emergency Plan ) equipments , kept onboard every ship. There is a requirement for keeping all these equipments onboard ships in a particularly designated space called "SOPEP LOCKER" in the sufficient quantities along with the extra spares. All these equipments must be used to the fullest possible to minimize the size of the of oil pollution and their after effects. As per the prevailing OPA ( Oil Pollution Act) and MARPOL (Marine Pollution ) regulations and the requirements of the administrations ( Classification Societies ) there must be a ship specific SOPEP MANUAL prepared for dealing with the emergency situations arising out of the oil spill accidents.

These SOPEP MANUALS will clearly indicate the national and international contact center details , their contact numbers, name of responsible persons and means of communication etc. for any emergency arising out of the oil spill accidents.

The SOPEP LOCKER must consist of below mentioned equipments in sufficient quantities:

1. Empty barrels

2. Wilden Pumps

3. Sawdust

4. Plastic or non - spark material shovels

5. Brooms

6. Rubber buckets

7. Absorbent pads

8. Oil booms

9. Plastic or rubberized material protective clothing, hand gloves and rubber boots etc

10. Oil spill dispersants (OSD) - (Not to be used unless proper permission is obtained from the concerned authorities. )

However always careful operation should be carried out and all possible means should be used and attempts should be made to avoid any oil spill or pollution at any cost.

COW ( CRUDE OIL WASHING ) EQUIPMENTS

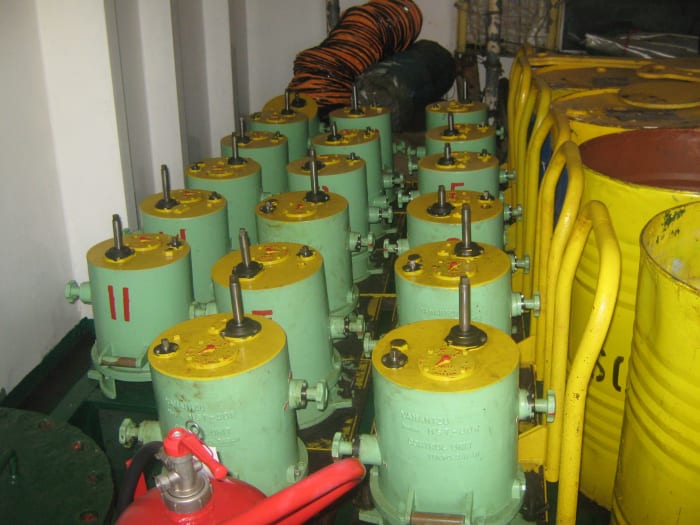

COW MACHINES TO BE FITTED ON THE CARGO TANKS TO CRUDE OIL WASHING

COW MACHINES TO BE FITTED ON THE CARGO TANKS TO CRUDE OIL WASHING

DECK MOUNTED COW MACHINE

DECK MOUNTED COW MACHINE

COW LINES  CONNECTING THE DECK MOUNTED COW MACHINES

COW LINES CONNECTING THE DECK MOUNTED COW MACHINES

CRUDE OIL WASHING ON OIL TANKERS

COW (CRUDE OIL WASHING ) is a process of cleaning the cargo tanks on the crude oil tanker ships. COW is a critical procedure on the oil tanker ships which must be carried out by the properly trained personnel because it involves very high risk, any mistake in the operation might result in very serious accidents / explosions or mishaps. Crude oil washing is carried out while discharging the crude oil from the ship's concerned tanks which are to be crude oil washed. In order to carry out Crude Oil Washing , the COW plan must be prepare and all the officers and crew participating in the COW process must be briefed for the COW plan the sequence of the washing, the method / procedure of washing i.e. Top Wash / Middle Wash / Bottom Wash etc. When the crude oil operation is being carried out , a continuous watch must be maintained from the Cargo Control Room by a responsible officer and sufficient number of deck hands must be put up on deck to monitor the crude oil washing. During the Crude oil washing process continuous watch must be maintained on the pressure , temperature , of the cargo tank , pressure of the COW line, quality of the Inert Gas being supplied to the cargo tank continuously , If any problem occurs with the I.G. system or the system fails to supply the required volume & pressure of the Inert Gas , the discharge / COW process must be stopped immediately until the I.G. supply system is revived.

COW machines are of jet nozzle type , in the form of single nozzle or double nozzle / programmable or non-programmable type. These machines are fitted on the ship , based on the ship owners, administrations and concerned rules & regulations requirements.
