How Industries Can Save Energy: 10 Practical Ways

The author is a professional engineer at a large 84 - hectare hospital facility, which is at the forefront of energy saving initiatives.

ways-to-save-energy-in-industry

Reviewed By: Engr. Sana Wasi, Senior Energy Management Professional at a leading healthcare facility.

Ways to Save Electricity and Energy Costs in Industry

  1. Optimize HVAC Systems for Efficiency
  2. Performing Regular Maintenance & Scheduling Equipment for Optimum Performance
  3. Use VFDs with Motors
  4. Implement Smart Lighting Controls and Automation
  5. Curtail Water Usage
  6. Optimize Electricity Distribution Network for Energy Efficiency
  7. Performing Demand Side Management for Energy Savings
  8. Perform Energy Bench Marking
  9. Deploy an Energy Management & Metering System
  10. Hire an Energy Management Expert

1. Optimizing HVAC Systems for Energy Efficiency

An efficient HVAC System can consume many times less energy without compromising on occupant comfort level. Key areas to look after when improving a buildings energy system include:

Improving Cooling Tower's Efficiency

Large cooling towers should be placed as high as possible and must have direct incidence with prevailing wind.

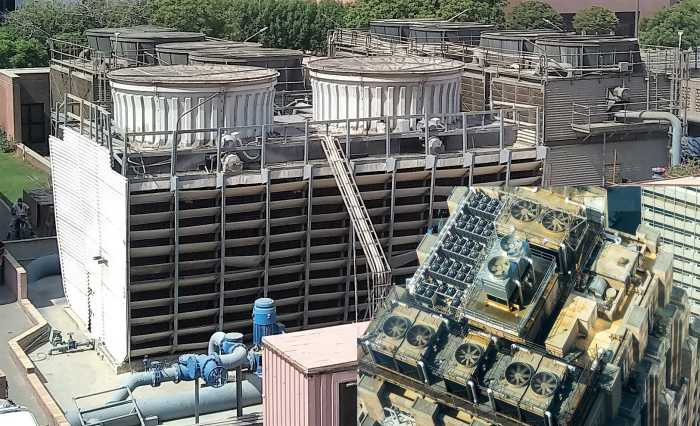

Cooling towers have reduced efficiency due to increased heat island effect, caused by proximity to ground level and lack of incident wind. Inset shows more efficient cooling towers placement on atop a high rise building.

Cooling towers have reduced efficiency due to increased heat island effect, caused by proximity to ground level and lack of incident wind. Inset shows more efficient cooling towers placement on atop a high rise building.

Minimized Cooling in Unoccupied Areas Reduces HVAC Load

Not all interior spaces maintain occupancy every time, some areas such as: corridors, hallways, ancillary rooms and toilets may only be occupied for brief intervals. Identifying and reducing cooling in these less occupied areas can reduce the overall HVAC load of the building. Dampers in duct work may be used to control air flow to these areas.

Adding Temperature Control in Habitable Areas

Thermostats help adjust cooling or heating to desired levels and will therefore keep HVAC systems at optimum working level. They do increases system costs, but have their advantages:

  1. Temperature can be set according to occupant's preference, which means occupants can decide to keep some areas less cooler then the others, and this will save energy.
  2. They will automatically adjust the amount of cooling required to maintain a set-point temperature, reducing it or increasing it, depending on external temperatures and occupancy level.

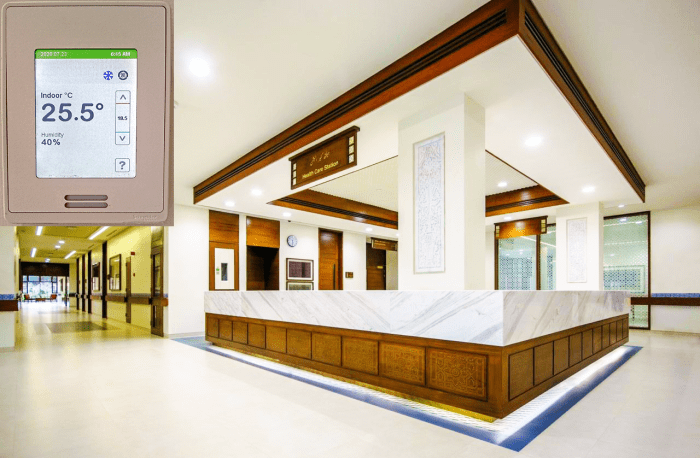

Thermostat's location relative to air supply and return outlets is critical to maintaining temperatures within the specified range in indoor spaces. Inset shows a digital temperature controller used in this building.

Thermostat's location relative to air supply and return outlets is critical to maintaining temperatures within the specified range in indoor spaces. Inset shows a digital temperature controller used in this building.

Regular Cleaning of Air Filters Reduces Load on Fans and Motors

Most HVAC systems have air filters to clean impurities from the air intake and protect air handling units (AHUs) from dust. Therefore:

  • Choosing an air filter of correct size.
  • Performing regular filter cleaning, and
  • Replacing them after the correct interval.

Will go a long way in saving money and energy. If filters have lower resistance for passing air through them, AHU motors will consume less energy to move that air and at the same time, provide better air quality for occupants.

Replacing HEPA filters.

Replacing HEPA filters.

Maintenance of Piping and Duct Work Minimizes Energy Losses

Piping and duct work insulation is very important in saving energy. It ensures that cold air flowing in the ducts and chilled water flowing in the pipes gain minimum heat from the surrounding. This eventually reduces reduces the energy consumption of chillers.

Regular inspections are thus required to:

  • Check for condensation on chilled water pipes and ducts.
  • Check for air leaks in ducts.

Adjusting Motor Frequencies According to Air-flow Requirements

AHU's motors do not necessarily need to be working at full 50 Hz capacity all the time. A little effort, spent in ascertaining exact air-flows required and then tuning VFDs according to those requirements, will have a huge impact on AHU's energy consumption over an extended period of time.

2. Regular Maintenance and Scheduling of Major Equipment

A carefully planned preventive maintenance plan for chillers, boilers and pumps is beneficial in:

  • Identifying faulty and under performing equipment and hence reducing their energy consumption.
  • Improving life and efficiency of existing equipment.

Such maintenance plans should be developed and supervised by engineers.

Scheduling Equipment Can Bring Straightforward Energy Savings

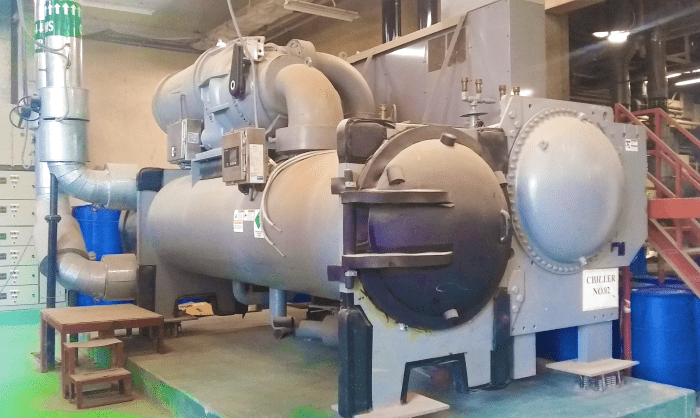

Large loads such as this 1000 tons electric chiller must be carefully scheduled and committed.

Large loads such as this 1000 tons electric chiller must be carefully scheduled and committed.

Equipment and machinery that is regularly used must be committed according to pre-planned schedules, only when required. Common equipment that must be scheduled include:

  1. Large pumps
  2. Air Handling Units
  3. Electric Chillers
  4. Boilers.

Planning equipment use before-hand gives you the opportunity to optimize their use by efficiently utilizing the machinery in least possible time. A conspicuous effort to lower run-times of largest machinery will yield the greatest energy and electricity savings.

3. Using VFDs with Motors Can Reduce Energy Consumption

Standard direct online and star-delta motor starters bring the motors to full 50 Hz AC frequency and then keep them running at that frequency. Most applications, however, do not require the full 50 Hz frequency. They will give the same result on, let's say: 45 Hz rotation frequency, as they did on 50 Hz.

Therefore significant amount of electricity can be saved by running motors with their most optimum operating frequency determined and set through the VFD, since that is expected to be lower then 50Hz, applying this on a number of motors across your facility will have a huge impact.

Typical applications that can benefit from this principle are:

  1. Exhaust fans.
  2. Air Handling Units.
  3. Centrifugal and other large pumps.
  4. Mixers and other rotating machinery.

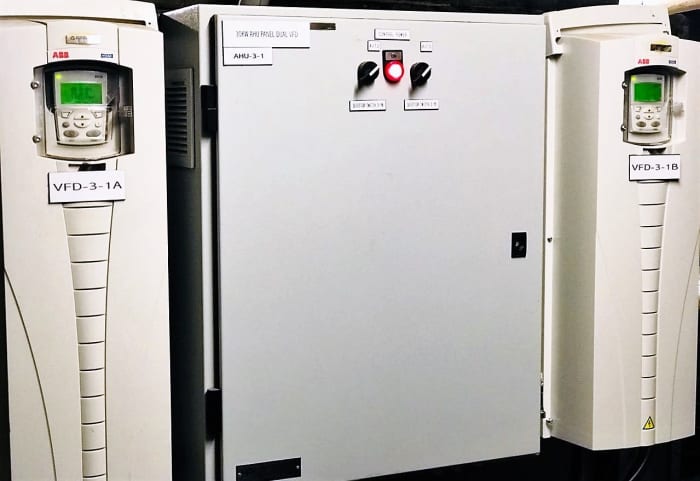

This dual VFD arrangement uses alternating VFDs on hourly basis and allows the other to cool down during rest cycle, thereby squeezing extra energy savings out of them, other then reducing motor hertz.

This dual VFD arrangement uses alternating VFDs on hourly basis and allows the other to cool down during rest cycle, thereby squeezing extra energy savings out of them, other then reducing motor hertz.

4. Automated Lighting Solutions for Energy Efficiency

Lighting controls play a significant role in energy reductions and following strategies can be helpful in achieving this:

Using Photosensors in Lighting Circuits Can Help Track Day-Light Hours

Photosensors can monitor the amount of natural daylight available and can switch 'on' or 'off' lights over a set-point depending on light intensity. They can also automatically adjust the light output of fixtures based on available external illumination by dimming the lights and yielding extra savings. They are best used in:

  • Rooms and interior spaces with large windows and skylights where natural light can enter the room.
  • External lights, e.g roadside lights.

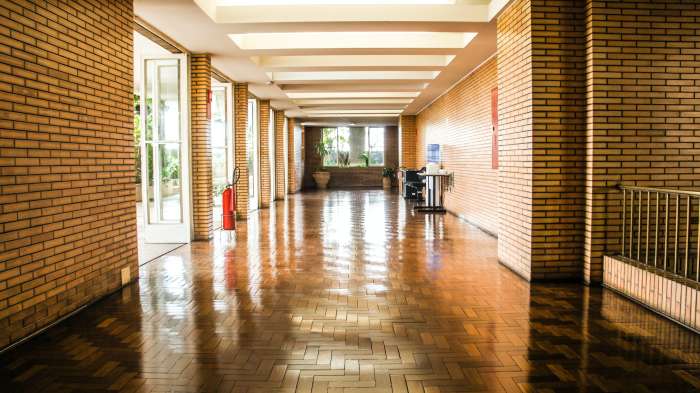

Carefully designed hallways, corridors and rooms that allow natural light to illuminate the inside space, offer huge opportunities for energy savings through lighting automation.

Carefully designed hallways, corridors and rooms that allow natural light to illuminate the inside space, offer huge opportunities for energy savings through lighting automation.

Using Occupancy and Motion Sensors to Track Occupant's Movement

Occupancy and motion sensors ensure that lights are 'on' only when occupants occupy the space. As soon as the occupants leave the space lights are turned off by the sensors, that are connected to lighting circuits. They can be effectively used in public use spaces where people are least bothered to switch off lights e.g:

  • Toilets.
  • Common rooms and lounges.
  • Less frequently used corridors and hallways.

Automating Lights with Timers

Timers can be used to control lights 'on' and 'off' at specific times. Commonly it is used to turn them 'off' during daylight hours and 'on' during evening and night hours. They may be conveniently used for:

  • Roadside lights
  • Parking lot lights
  • Walkway lights

Reducing Light Trespass Minimizes Luminary's Wattage

Light trespass is when a luminary's light spills out into an area which was originally not intended to be lit up. Lights that illuminates unwanted areas are a wastage of energy, hence carefully targeted, full cutoff lights, that only light up the desired area must be used instead of non-cutoff lights.

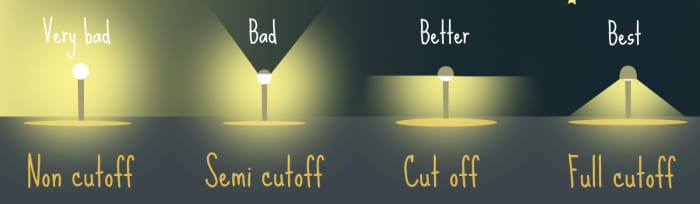

Paying attention to light cutoff will reduce the wattage of luminary required for a particular application and still bring the same desired outcome.

Paying attention to light cutoff will reduce the wattage of luminary required for a particular application and still bring the same desired outcome.

5. Curtail Water Usage

Curtailing water consumption will eventually reduce the energy required to pump that water and at the same time, lower utility water bill. One way to achieve this is to:

Use Flow Restricting Faucets to Curtail Water Use

Occupants engage faucets and showers when they use water. They can be optimized in the following ways:

  1. Using tap restrictors — They provide equal flow at a number of taps in a washroom and can reduce water flow by 15%.
  2. Using Push taps — The only operate when pressed, turn off after a brief time period and are ideal for areas where taps may be left running.
  3. Shower regulators and water-efficient shower heads — these decrease the volume of water coming out of a tap or shower and can reduce water flow by 20%.
  4. Infrared controllers — They provide water only when required, switch off automatically and can save between 5 and 15% of water per tap per year.
  5. Faucets with aerators — They decrease volume of water coming out of a tap by blending the stream with air bubbles.
Water jet with air bubbles emerging from an aerator faucet. Inset shows a faucet aerator.

Water jet with air bubbles emerging from an aerator faucet. Inset shows a faucet aerator.

6. Optimizing Electricity Distribution Network for Energy Efficiency

Electricity distribution networks can be optimized by ensuring that power factor stays above 90% and harmonics are kept to a minimum level. A high voltage service entrance will help avoid voltage sags and could potentially bring in lower costs.

How Power Factor Correction Can Reduce Electricity Bill?

Reactive power compensation at appropriate points throughout the distribution network will:

  1. Reduce reactive power demand on generators and reduce their fuel consumption.
  2. Avoid low power factor penalties from utilities.
  3. Stabilize voltage levels and reduce load current demand.

Harmonic Mitigation

Facilities such as hospitals, which run a large number of LED lights and electronic equipment usually have their secondary distribution systems polluted with harmonics.

  • Active harmonic filters will help in reducing these harmonics and increase power quality. This will have a direct impact on billed energy.
  • Passive harmonic filters can be designed after a Power Quality Study to filter out specific harmonic orders.

How a Grid Station Can Help Lower Electricity Bills?

Purchasing electricity at 11 kV is cheaper then a 400 V service entrance, and purchasing the same electricity at 132 kV, via a dedicated grid station is even cheaper for larger facilities.

This is because the utility saves the cost of investing and maintaining secondary distribution infrastructures, and that is why most utility companies provide a lower rate per kWh when electricity is purchased at a higher distribution voltage level.

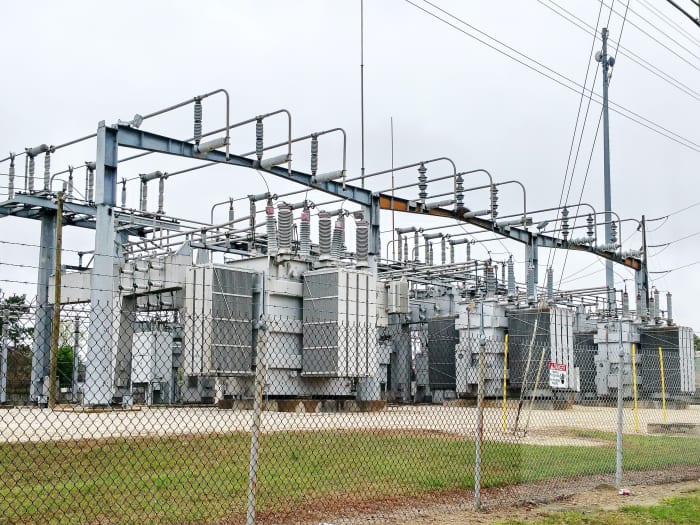

Investing in a 132 kV grid station will both increase the reliability of electricity supply and take advantage of reduced per unit rate at this voltage level.

Investing in a 132 kV grid station will both increase the reliability of electricity supply and take advantage of reduced per unit rate at this voltage level.

7. Demand Side Management for Energy Savings

Altering consumption behaviors of facility occupants is a crucial demand response tactic, aimed at avoiding consumption during peak hours and minimizing energy usage by individuals. Key initiatives in demand side management include:

  1. Shaving peak demand using on-site renewable generation or battery storage to help escape maximum demand penalties, and avoid high unit charges during peak hours.
  2. Energy awareness campaigns can persuade occupants to do voluntary energy savings by reducing the amount of lighting and cooling, each individual will prefer in his own space.

8. Performing Energy Bench-marking

After you have implemented the above practices, how will you quantify them and prove energy savings? The answer is Energy Bench-marking.

It works by:

  1. Normalizing the amount of energy consumed in a facility in either kWh / Sqft. or BTUs / Sqft.
  2. Setting a baseline year as a benchmark for example, in 2010 the average yearly energy consumption of a facility was 30 kWh / sqft.
  3. Tracking-down the reduction or increase in energy consumption factor from the baseline year.
  4. Reporting quantified energy savings or losses that have concrete proof.

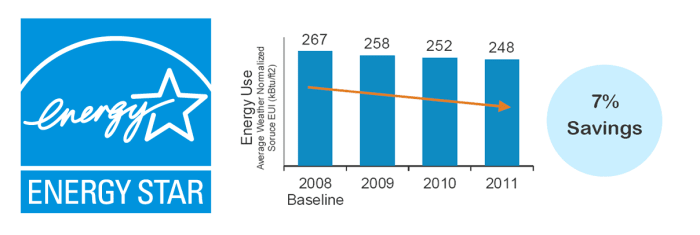

The EPAs Energy Start Portfolio Manager is a popular free energy management software that can be used to perform energy bench-marking.

The EPAs Energy Start Portfolio Manager is a popular free energy management software that can be used to perform energy bench-marking.

9. Deploy an Energy Management & Metering System

Advanced energy management & monitoring systems can perform complex calculations in an automated way. Deploying an energy management software along side energy metering infrastructure will help you:

  • Gather real time consumption data from energy meters (energy analyzers, gas and water flow meters) scattered across the facility on one screen.
  • Visualize this data in real-time.
  • Perform complex energy bench-marking calculations on monitored data.
  • Keep historical record of facility's energy consumption.

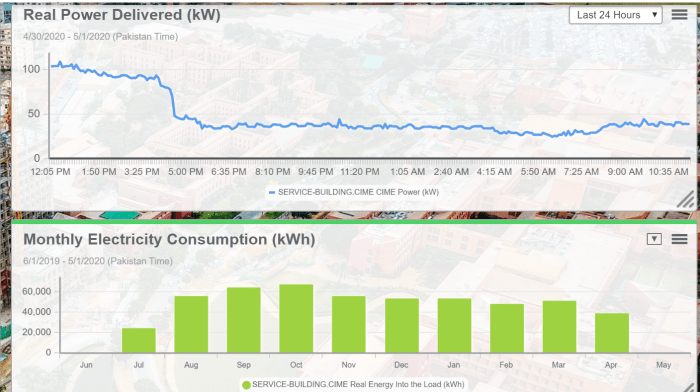

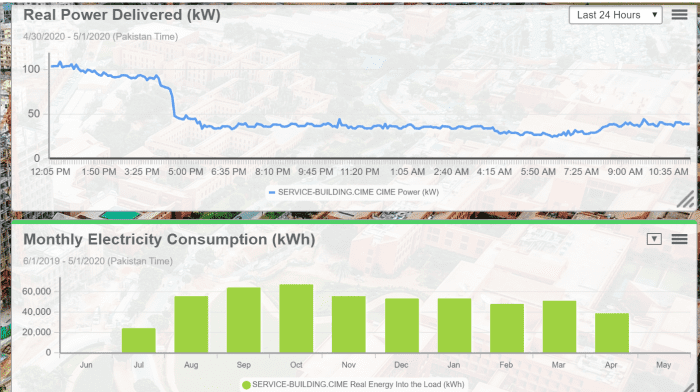

Schneider Electric's Power Monitoring Expert energy management system visualizes real-time data from meters, and can perform complex calculations and analysis on it.

Schneider Electric's Power Monitoring Expert energy management system visualizes real-time data from meters, and can perform complex calculations and analysis on it.

Aside from that, real-time monitoring helps pinpoint exactly where and when energy is being consumed. That will eventually help you iron out the inefficiencies in the system and will be a huge aid to equipment scheduling efforts. The possibilities depend on the extent of energy monitoring infrastructure deployed in the facility.

10. Hire an Energy Management Expert

An energy management expert will lead and mange all the energy saving initiatives in the facility.

Most energy managers will eclipse their salaries, many folds with accrued energy savings.

Most energy managers will eclipse their salaries, many folds with accrued energy savings.

Hiring an energy expert will add value to your organization by:

  1. Monitoring energy consumption in HVAC assets on regular basis.
  2. Devising and implementing equipment operation schedules.
  3. Administering energy awareness campaigns.
  4. Performing energy bench-marking and all the measures mentioned in the preceding discussion.

This article is accurate and true to the best of the author’s knowledge. Content is for informational or entertainment purposes only and does not substitute for personal counsel or professional advice in business, financial, legal, or technical matters.
