OM2P Open-Mesh WiFi Mini Router
The OM2P router from Open-Mesh truly is an amazing bit of kit, and offers a huge amount of functionality for the cost. It features a super fast and responsive 400MHz Atheros processor and a massive 64MB of RAM which can handle video streaming, gaming and multiple clients with ease. The OM2P has a maximum power of 400 mW and 26 dBm power output with external antenna support. It supports g/n wireless with speeds up to 150 Mbps and 300Mbps for the OM2-HS model.
The OM2P is cloud-controlled from the free Cloudtrax dashboard WiFi hotspot management system which can be accessed from any computer with an Internet connection. The Cloudtrax system used with the Open-Mesh routers can support free or paid for WiFi networks ranging in size from just one unit to hundreds. The Open-Mesh range provides solutions from a single unit for a cafe to an entire citywide network.

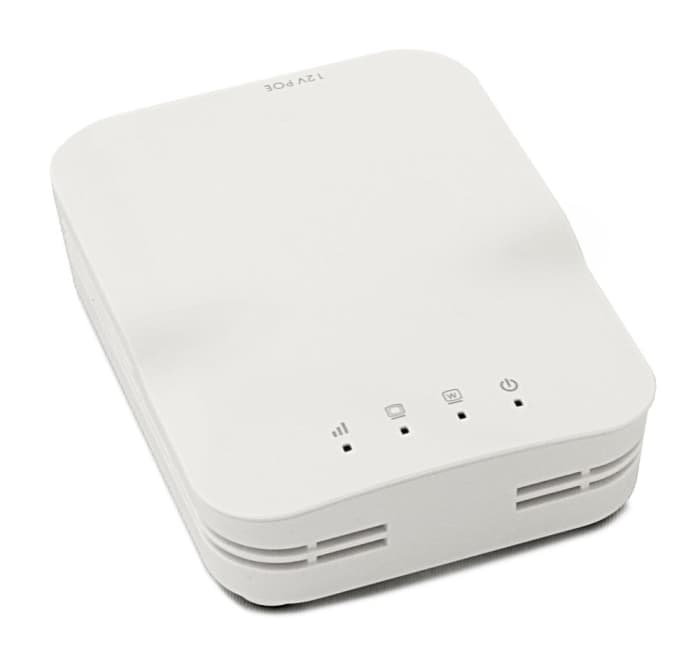

Open-Mesh Mini WiFi Router
The unit is much smaller than you would expect as it can be held in one hand and is about the same size as a smartphone but it is absolutely packed with the features of much larger and more expensive equipment.
The OM2P is an attractive piece of equipment which means it can be installed in an office, school, hotel room or cafe without the need to purchase an enclosure although you may wish to use one of the special enclosures for aesthetic or anti theft prevention reasons.
Public & Private SSID
The OM2 supports two SSIDs (network names); this essentially gives you two wireless networks that can be independently controlled via the Cloudtrax dashboard.
The public SSID can be used to give free and/or paid for WiFi access and the private SSID for admin roles or staff access. Each SSID can be enabled or disabled with one click. In a hotel or school setting this can be used for guests/staff or students/teachers.
The OM2P is shipped with Open-Mesh firmware pre-installed so only the MAC address (like a serial number) of the router needs to be entered in to the free Cloudtrax dashboard. The unit then just needs to be connected to an Internet connection and the WiFi network is live!
Anyone, even with no prior knowledge of wireless networking, can setup and install a free and/or paid-for WiFi network with just one or multiple access points. The firmware can be upgraded or downgraded if so desired; over-the-air upgrades can also be enabled when new firmware versions are released.
WiFi Network Management / Centralised Cloud Controller
The Open-Mesh OM2 units which form the WiFi network can be controlled from a (free) remote centralised dashboard provided by Cloudtrax from any Internet browser anywhere in the world. The dashboard allows you to view, edit and add/remove units (nodes), view individual user activity and overall upload/download, create/view & edit access vouchers. Each unit will 'check in' every ten minutes updating the status of that node, mesh units will show last and average mesh speeds and latency which makes the positioning of units for best performance easy even for non professional installers. Customisable Splash/Landing pages are fully integrated which allow to you provide free and/or paid for access.
Paypal is fully integrated with the Open-Mesh/Cloudtrax system so customers/guests can be charged for access using their credit/debit cards. Vouchers can also be created so access can be sold offline at a hotel lobby/cafe counter or over the phone.
Each Open-Mesh OM2P router will act as a Gateway when connected directly to an Internet connection, and every other unit just connected to a power source will become a repeater forming a self-healing mesh. If multiple Gateways are used in the network and one Gateway goes down the unit will automatically become a repeater supporting the network. Meshing speeds between nodes can reach 45 Mbps with a latency of just 1ms. Units can be moved, repositioned and added to give more coverage in minutes. Meshing speeds, number of hops and the network diagram showing how many nodes each node can see can all be viewed from the Cloudtrax dashboard.
Power Over Ethernet (PoE)
All OM2 routers support PoE, which means both the data and power are carried over the Ethernet cable up to 300 feet making installation in areas without power easy. This also removes the risk of electrical shock with outdoor installations and does not require a qualified electrician to install outdoor units. The units can be daisy chained together to provide ever further coverage.
Meshing Speed LEDs
Each OM2 unit has a Red, Yellow and Green traffic light system to show meshing speed which makes positioning or repositioning units for the best speed simple without the need for extra monitoring equipment. When installing a unit you ideally want to see a Green blinking light which indicate the meshing speed is over 2.5Mbps, anything below that will most likely result in poor latency speeds and a poor customer experience. One of the main advantages of the traffic light system is that if a unit is shipped to a customer they can easily position it for optimum performance without any technical knowledge.
Blinking Green - Internet working
Solid Red - No Internet
Blinking Green - Speed above 2.5Mbps
Yellow Solid - Speed between 1.5Mbps - 2.5Mbps
Red Solid - Speed below 1Mbps
Open-Mesh OM2P Coverage Range
The range of any WiFi equipment is affected by many factors including line of sight (LoS), interference, obstructions, antenna, terrain and weather to mention a few. WiFi signals can travel for miles, however when considering the range of a WiFi network for public use the range is limited by the users equipment. The WiFi card in a users laptop or more commonly smartphone is fairly low power and the antenna fairly small, so even if you had a 10ft antenna and used the maximum power output the range would still only be in the 100-300 feet range. If you wish to cover a large area it would be best to use a single unit with an external antenna as your gateway and then add more units to mesh with the gateway on the edge of the useable range. Using just an 8dBi antenna with the OM2P will provide a good foundation for adding more units to create a much larger coverage area.
Open-Mesh OM2P, OM2-LC, OM2-HS & OMP5-AN Comparison
|Open-Mesh OM2P||Open-Mesh OM2-LC||Open-Mesh OM2-HS||Open-Mesh OMP5-AN|
2.4 + 5 GHz concurrent
19 dBm (79 mW)
External Antenna Support
400 MHz Atheros AR7240
400 MHz Atheros AR9330
520 MHz Atheros AR9341
520 MHz Atheros AR9344
Zero Config Plug & Play
Self Forming, Self Healing Mesh
Public & Private SSIDs
2 x 100Mbps
2 x 100Mbps
2 x 100Mbps
1 x Gigabit & 1 x 10Mbps
OM2-LC / OM2-HS Model
Open-Mesh Basic Setup & Installation of Units
The Open-Mesh OM2 range can be installed without enclosures but you may wish to use the wall or ceiling enclosure for aesthetic or anti theft reasons. The ceiling mount is the most attractive but can house only the OM2P HS and OM2P LC models. It has three holes so you can see the LED lights once it is installed and looks like a smoke alarm or light fitting.
If the OM2P is installed outdoors it must be used with the special weatherproof outdoor enclosure. The outdoor enclosure can be pole mounted horizontally or vertically with cable ties. It is made from white UV-stabilized ABS plastic for a high-quality & attractive installation.
Open Mesh OM2P Manual
When you receive the Open Mesh OM2 router it does not come with a manual but there are set up guides & FAQ on the Open-Mesh and Cloudtrax websites. However the OM2 range is designed to be plug and play and there is very little set up required.
Open-Mesh MR900 High Performance WiFi Router
Open-Mesh have just released a new model, the MR900. This model is designed to support up to 100 simultaneous users, ultilising both 2.4Ghz and 5Ghz it can achieve speeds up to 900Mbps.
It can be added to existing networks and will mesh with the OM2P range.
I have not tested it yet but if it is as good as open-mesh's other products then it should be excellent.
Open-Mesh Product Changes & Updates 2015
Since this article was written Open-Mesh have made some changes, introduced some new products and features and plan on discontinuing some products.
- As mentioned above they have added the MR900 which is 5Ghz enabled, meaning devices which have 5Ghz capability will be able to take advantage of the increased speed and it will reduce the strain on the 2.4Ghz frequency. This basically means both older 2.4Ghz and newer 5Ghz devices (smartphone/laptops/tablets) will be able to get the best performance. The MR900 can handle 50-100 simultaneous users so it is ideal for larger venues.
- The OM2-LC (Low Cost) model will be discontinued soon.
- The OM2-HS (High Speed) model has had its power doubled up to 200mW
- Open-Mesh had introduced another new model the OM5P-AN which features both 2.4Ghz & 5Ghz support, Facebook WiFi, 450 Mbps max. speed (135Mbps real user speed) and 1 x Gigabit Ethernet port.
- Facebook WiFi has been introduced and is available on the newer models like the MR900 and OM5P-AN which allows a business to boost its online social media profile and get lots of free advertising.
