When we moved to Palawan. We chose a property with lots of bamboo groves. Bamboo is a fast-growing building material.
Native thatched roof
Our tropical farm lot
We bought a 2 hectare (approximately 5.5 acres) farm in Luzviminda, Puerto Princesa, Palawan, Philippines. When I first posted this blog, only the pumphouse was being built, we have since built a large barn and now live in an apartment above it.
Our dream is to be as off the grid and as self sustaining as we possibly can. Dave is using green technology such as solar lighting along with using as many native materials as possible. We have 5 bamboo groves on the property and have been able to selectively harvest enough to use as the siding on the native pump house.
We are using recycled materials such as broken tiles and bamboo scraps for towel rods and cupboard handles, which the carpenters used to burn! Eventually I want to try my hand at aeropoincs gardening. This should save on water and soil.
We have begun harvest rain, recycle grey water, use worms (as in vermiculture) to process household wastes and grow all our own food via organic farming practices using compost made by worms. Oh! And we also drive electric motorcycles, e-trikes and use an electric farm vehicle the we call the electric carabao (water buffalo).
This blog is how we started with the pump house cottage which was also used as the first shower house and eating area while we planned our next move.
Because we live so far out of town, it's difficult sometimes to get supplies delivered here, so the next building was a large barn to store the materials out of the rain. It was so big that we decided too put an apartment upstairs so that when we build the ain house, we will be on premise to monitor the workers. Sometimes things aren't always put where you told then to, like wallks and plumbing!!
Hand dug water well
They hit water at 50 feet
July 21, 2010 - Before we did anything, we realized we needed running water; our own water source. Our caretaker was walking 1/2 kilometers to a well and carrying buckets back to wash dishes with and to bathe in!
This is drilling for water the hard way. One of the problems of building out so far from the city is skilled labor and hi tech equipment. One chap from the barangay came by and offered his services, so we went with him. He and I both witched for water using his metal roads and this is one of the two spots we found. There were so many rocks in the way it took them a week to find water, but at 50 feet we finally struck gold as it were. Our first step in self sufficiency! Not to mention, ever so much easier on our caretaker than walking half a Km to the community water well and lugging plastic jugs back!
Hand pump installed
with a 3X3 m cement slab
Aug. 6, 2010 - This is the first step we took. After inspection, we decided that we would extend the cement slab to 16X16 meters and build a native shack around it. There is nothing but the caretakers' cottage on the farm. Nowhere for us to sit in the shade except right next to their hut. We decided to expand the slab so the hut would not only house the water well equipment, but could also offer a private shower area for us and small veranda to sit in out of the sun and away from the caretakers cottage so we could have a little privacy.
Thatched staircase to upper native deck - Jump 2 years later
Our electric tricycles are parked under the stairs. This blog has gotten out of sequence but how we started with the pumphouse is still here to show the progression. The original pumphouse featured here, far left thatched roof is now 2 years old.
Our new bedroom cottage- 2014 - Using bamboo from our groves.
Our Native cogon thatched roof - January 2012
This deck leads to our apartment built above our converted barn. Dave had an all bamboo playset made for our 4 year old daughter Alysha. It's a swing, slide, sandbox and little covered upper deck. All the bamboo was from our groves.
The native hut on the left is the one that I have featured being built on this page. It's now two years old!

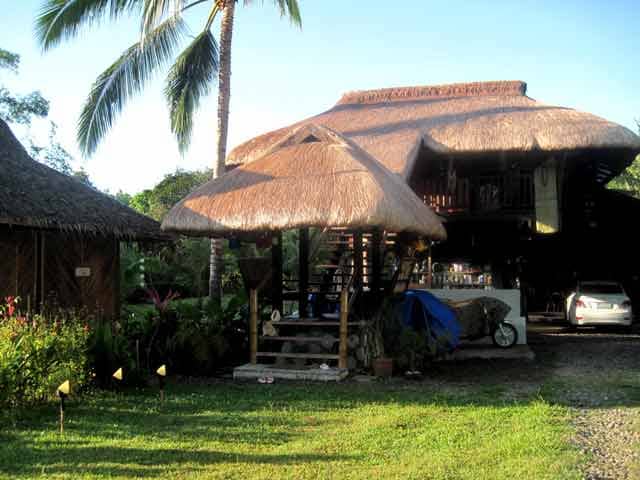

Our Home March 2013 - Gone native we have
The plants grow so fast around here. We have added more solar panels on the main roof (not shown) which runs all of the lighting. After three years, we had to change the native nipa thatch on the pump house. We have now covered it in netting to keep the chickens from scratching at it.
Compared to January 2012 the plants in front are so much bigger.
June - 2013 - Breezeway between pump house - and house was once a muddy area.
This is the view from my front steps. Far left is one of the benches on the landing to steps going to our personal apartment and my native office deck. This was a muddy walk to the pump house and animal shelter. We put in the bamboo couch bench as well as a bamboo roof to protect it. We now have a nice outdoors sitting area.
We put in a bamboo raised pathway to get off the mud, and the rains can still drain under it. No more much going to feed the animals.
Native deck/office - March 2013 - Cogon Thatched roof
This is where I work from. This is what the deck looks like inside. It's at tree level so when I look out from my deck, all I see is green. For the sake of expediency, as we were in a hurry to move in, we just wrapped green house netting all around it to keep the bugs out! I had them make the traditional slatted bamboo floors so it would stay cool and also, it comforts me with a flood of lovely childhood memories.
Homemade Virgin Coconut Oil - Cold pressed with love
We have so many coconuts on the property, we drink a lot of coconut water from the green coconuts, and coconut milk in curries, I decided we might as well try to make our own Virgin Coconut Oil or VCO.
It took 10 coconuts to make the 2 bottles in the photo. I now know why it's so expensive! However, with the waste products we make orchid holders from the husks, bowls and lamp shades from the hard shells, the water that separates from the milk can be fermented into vinegar and the grated and pressed coconut meat is used as a soil conditioner and feed for our chickens who love it.
Recycled plastic soda bottles as hanging planters - The seeds have only just sprouted.
We live on an island, as such, it has limited capacity for trash. With the hundreds of thousands of tourists arriving to see the Underground River, the sale of water in plastic bottles has escalated. We are trying to recycle as much as we can. The use of plastic bottles as hanging planters was an idea I got off Facebook and felt it was a good use of the bottles. Plus the local school has become interested in teaching the children to do this and has become a school project as well.
Native roof for pump house - with rattan twine
Nipa roofing being used by our carpenters with rattan twine.
Are from our own bamboo groves. They are making them into strips for the siding for the pump house. One problem with bamboo if it isn't treated for termites, it that is eaten fast! One way to preserve the bamboo is to soak it in sea water for a month. We might have to build a trough to soak them in salt water since we don't have beachfront property where we could keep an eye out on the bamboo while they soak.
Our own Bambusa bamboo grove - Selectively harvesting our giant thorny bamboo.
Aka arundinacea giant thorny bamboo. It turns out our bamboo grove is called thorny bamboo. Some of the best bamboo around for building.Talk about sustainable. The shoots are edible, the walls are thick and planted as a fence are impenetrable because of the thorny stalks. The leaves are emetic for worms and the thorny stems are used to make paper! The bamboo stalks can grow to 150 feet tall.
If we are careful, our 5 groves will continue to give us wood to build our huts with. During the rainy season, I have literally watched the new sprouts grow over a foot a day!
or Buko juice from our own coconut trees
Coconut water, or locally known as Buko juice, is the purest liquid second only to water itself. It is chock full of electrolytes, calcium, potassium, magnesium; everything that is good for you.
Native pump house - with solar panels for lighting
Sept. 15, 2010 - The wood is all local and the bamboo for the siding is from our own groves. Dave put up the solar panels so there would be lighting inside the hut at night. There are two 12 volt, energy efficient bulbs, they run all night and run off batteries Dave recycled. He found out that car and motorcycle batterries put out quite enough energy from the solar panels do to that job! So don't be throwing away those car batteries folks Use them to light your own areas with solar. That's a big savings in upfront cost right there!
Another wall done -Sept. 17, 2010 - One more wall done
Two more to go...Made with the bamboo from our own groves.
Pump, shower and veranda - Multi-function building
After we put in the well and had water with a hand pump, we wanted to attach an electrical motor and water tank, but with the ability to switch back to hand pump in a brown out. Then since we had to put up a building over the motor, we decided to expand it to accommodate an enclosed shower area the well is exposed to the street. This way we could clean up at the end of the day, in privacy and a dry place to change clothes in.
We also didn't have a place away from the caretakers cottage so we expanded the building to the back so we could have a veranda to relax at in the shade.
Hot and cold showers! - Sept. 22, 2010
The shower stall just needs the bamboo sprayed with anti termite stuff and then lacquered so the water doesn't water it so fast.
Outdoor sink on patio - This will be handy.
I put the sink outside the shower room so someone could brush their teeth or wash hands while someone else was taking a shower. The whole pump house is lit by solar lighting.
Solar LED light bulbs - Using our own bamboo for the poles
June - 2012 -We found these new solar LED light bulbs in town. They are rated at 5 watts. When we installed them and turned them on one night, they turned out to be brighter than our energy saving electric bulbs! We have now installed about 6 of them all over the property. They use so little of our battery storage that I can run one over my desk all day now instead of the electric powered bulb! Yay!
Pump house almost done - solar lights lining the path.
Pump house is now 3/4 complete! Yahoo...interior windows, wall and doors next!
Front of pumphouse - that faces the street.
Just a few last touches and it's ready for us to hang out in soon!
Pump house hut showing patio. - A done deal.
Oct. 9- 2010 -Finally done! Mostly! The cement floor was just stained with red cement dye. We recycled some broken tiles and used them on the sink and the shower room. The bamboo siding was hand cut from our grove by the local carpenters and placed using my design. Window leads to the shower area. In the background are solar path lights leading to the caretaker's cottage. This is pretty much done now. Only thing lacking are the cabinet doors for under the sink.
There is now a covered couch bench on the side of the pump house and a bamboo walkway. How different it looks now only three years later!
Recycling chip bags - and turning them into art.
Hanging door decoration made from recycled tetra packs. Made by our bamboo worker's wife from the bags of chip snacks they eat and seeds they find on their property. I am going to have her teach others in the village, buy them from her and sell them. Already have orders for them!
Bamboo shower door from our own grove
Inside door to shower. I wanted the materials to come from our own land, so this took longer than just buying a ready made door. Turned out nicely eh? The siding is pre made and sold most everyhwhere, but also from locally grown materials, and then made in Puerto Princesa, Palawan. The floor is just cement with red cement dye.
Recycled broken tiles - for the shower room.
We used recycled broken tiles for the shower stall. I gave the workers my ideas and they executed it. There is no grout yet though. Tile cost was about 6.52 USD for all the tiles for the shower and sink area with leftovers for something else too. Bought from the local hardware store.
Bamboo cupboard done - and recycled broken tile sink too!
This is the one area I couldn't wait for to be done. We finally have a little spot in the shade to contemplate our next move and someplace to wash our face and hands at the end of the day. We have little portable butane cookers to set on the counter so now we can make hot coffee or tea or even make a meal. Inside the hut is the shower area so we can clean off after getting dirty all day and not have to wait to go home to clean up.
Since we couldn't just go out and buy cabinet doors that looked like these, they had to make all the pieces from scratch out of bamboo poles from our grove! Same with the siding on three of the sides facing the street. The back wall where the sink is, faces the back of the property, so we just had pre-made siding put up there to expedite things a bit!
Front view of cupboards
The local carpenters made the cupboard handles from bamboo scraps after I showed them how to. The floor was left cement with terracotta colored dye added to it. This is just a closer up view of the recycled tile sink and cupboards.
Bamboo hut from Westside
The door to the hut done!
sink in on the other side of patio. Can't wait to hang out on the little patio area and plan the next building. Solar lights line the path to the caretakers hut.
13 Months later - Nov. 2011 - Lots of plants now
The pump house has changed so much. It now has bamboo tables and the plants! I can't even believe how much they have grown in 6 monhs! We have since built a barm, which was so tall and wide, we dedicded to build a loft apartment above it and added a native deck made of cogon thatch.
Front porch 13 months later - Jan. - 2012 - stairs to upstairs living quarter
We built a barn to house the supplies, which aren't always easy to come by, to protect them from the rain. We overbuilt it so much that we have also added a loft apartment above the workshop. Dowstairs there is now an enclosed kithen, shower and commode.
We added a kitchen down in the workshop area, a commode, and kithchen initially so we would be comfortable on day trips. But after building those, we saw the potential to build an apartment above the work area.
Front porch June 2013 - Some nice finishing touches
This is the front porch now. We added some finishing touches like putting backs on the steps to the benched landing on staircase. This was so our shoes wouldn't keep falling down to the ground when we took them off and some decorative bamboo fascia on the benches.
The original pump house in in back on the left. So much has grown in less than two years as far as plants go!
Creek after rains - October 2010
Seasonal creek at the farm in Luzviminda, Puerto Princessa, Palawan, Philippines
Solar lights at night - during an electrical brownout
Dec- 2012 -We do get relatively quite a few electrical brownouts here. This was taken during one of those times. We hardly feel it. Our place uses LED light bulbs and LED strip/rope lights as well.
Our own bananas
Saba cooking bananas
These will be ready soon..yummy. I was pleased to see that we already had a small crop of cooking bananas on the farm. I have watched these grow with great anticipation. They are good caramalized with mascovado natural sugar! Or rolled in lumpia wrappers and fried, then coated with caramalized sugar. All bananas are a good source of natural potassium.
We put in a small Tilapia pond - for use with aeroponics someday
Well we did put in a small tilipia fish pond. We can now enjoy fresh fish any time. We want to hook this up to an aeroponics system one of these days if we could even get anyone to help us out with it.
In the meantime, we get fresh fish when we want it without having to buy from the fishermen or wet market.
