The suit worn by the Mercury astronaut was designed simply to protect the astronaut if the cabin lost pressure during the mission. The Mercury capsule itself was the primary source of protection for the astronaut in space, and unlike later Gemini and Apollo flights, the Mercury astronaut never left the capsule. His suit was more like the pressure suits used by pilots on high altitude aircraft flights than the space suits used later for Gemini, Apollo and beyond.
In keeping with Project Mercury's guidelines of using existing technology whenever possible, the Mercury space suit was developed from the Mark IV, an existing pressure suit developed by the BF Goodrich Company for US Navy pilots. Elbow, knee, and shoulder joint reinforcements were added to the nylon-rubber suit, and a layer of aluminum-coated material was added to the outside. The resulting suit weighed about 20 pounds. Each astronaut had three custom-fitted suits, one to wear in training, one for the flight, and one backup suit.
Oxygen was pumped into the suit through a hose that attached at the waist. This oxygen flowed through the suit, cooling it, and then flowed into the helmet for respiration. The suit also contained a series of bio-sensors to monitor the astronaut's temperature, respiration, heart rate, and other functions.

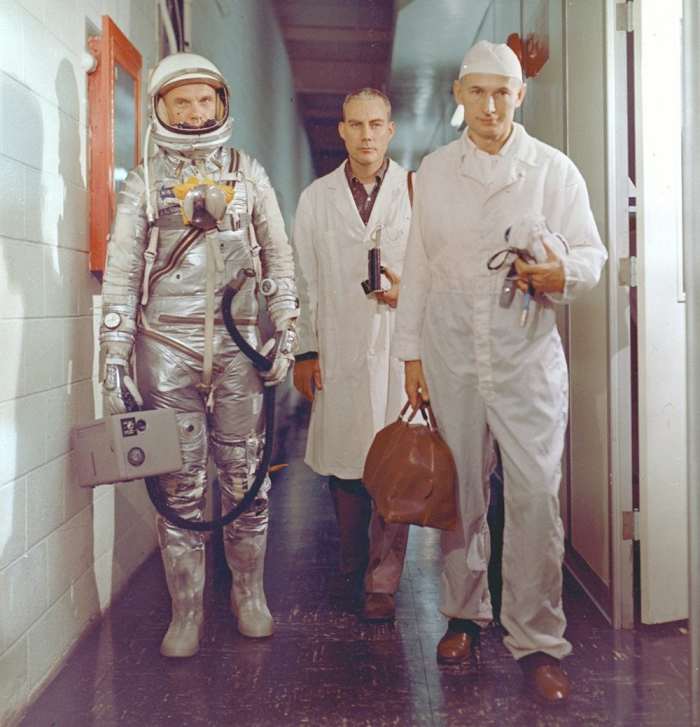

During transfer to the spacecraft, the suit was ventilated by a portable unit carried by the astronaut. Once inside the spacecraft, the oxygen hose was connected to the spacecraft's environmental control system, which provided oxygen to both the spacecraft and the suit. The bio-sensors were hooked up to the capsule's telemetry system through a connection on the suit's right thigh.
To learn more about the Mercury Spacecraft, see NASA Project Mercury - Spacecraft.
Helmet and Gloves

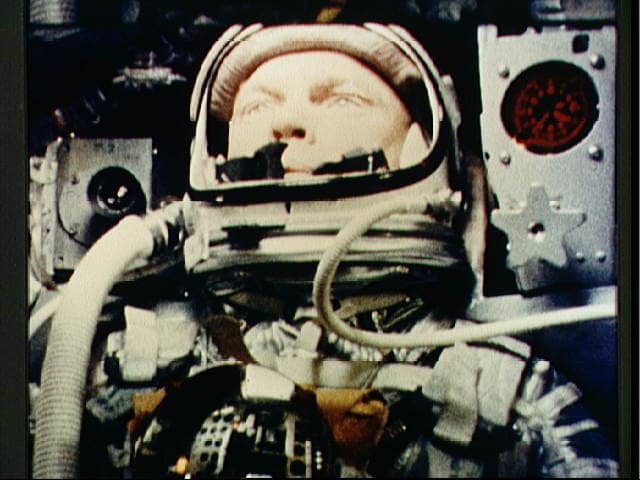

A plastic helmet protected the astronaut's head from buffeting. A hose was attached to a special vent on the right side of the helmet for the removal of exhaled carbon dioxide. A plexiglass visor could be raised or lowered. A small hose attached to the left side of the helmet used pressure to create a tight pneumatic seal when the visor was lowered. Because the spacecraft cabin was pressurized, the visor was usually worn open for most of the flight. During launch and reentry, however, the visor would be closed.

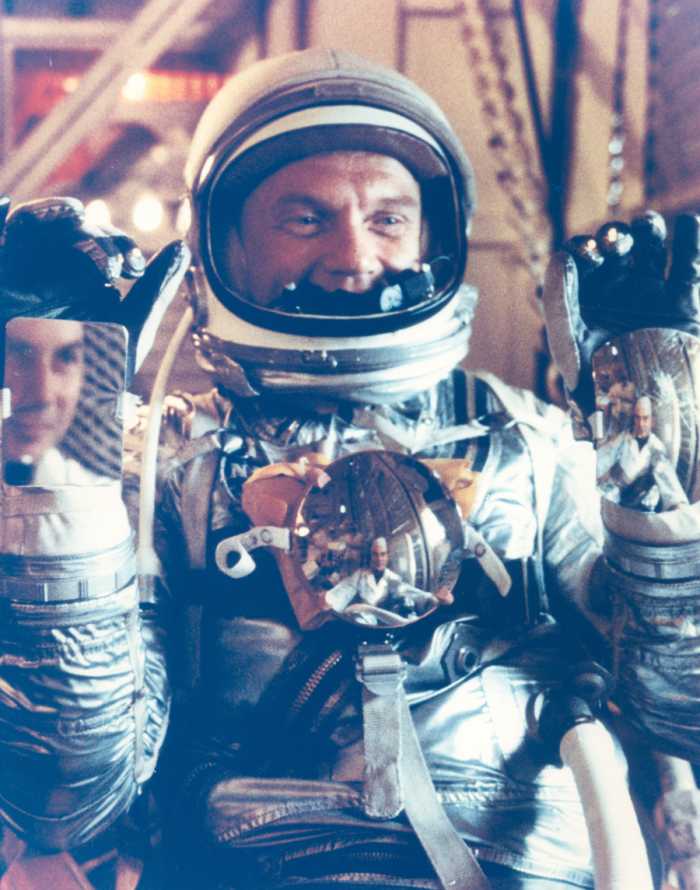

Gloves had fingers constructed of a special curved, ribbed material that enabled the astronaut to grip the controls, except for the left middle finger, which was made of pressurized material that let the astronaut more easily push buttons. The first finger of each hand had a small light built in, to help the astronaut see the control panel. In addition, a mirror strapped to each wrist helped him see instruments in hard-to-see locations. A third mirror, worn on the astronaut's chest, made the control panel visible to the camera that was recording the astronaut.
Movement was limited within the suit, especially when fully-pressurized, and this affected the design of the spacecraft's control panel. It was difficult for the astronaut to reach the center of the panel, so controls were arranged in a "U" shape around the left, right, and bottom of the panel.
This spacesuit performed well, and met the limited requirements of the Project Mercury flights. They would have to be improved, however, to meet the demands of the more ambitious Projects Gemini and Apollo.
