Heritage - 30: Whitby Cats and Yorkshire Cobles - Seagoing Barques and Inshore Fishing Vessels Along Yorkshire's Coast

Here's a departure - Ship Architecture: Whitby 'Cats' plied North Sea waters until steam overtook sail

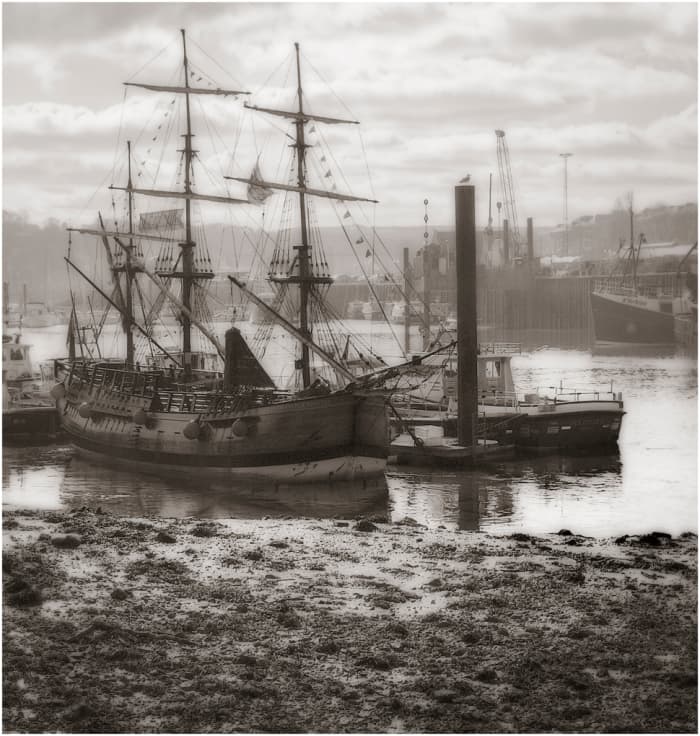

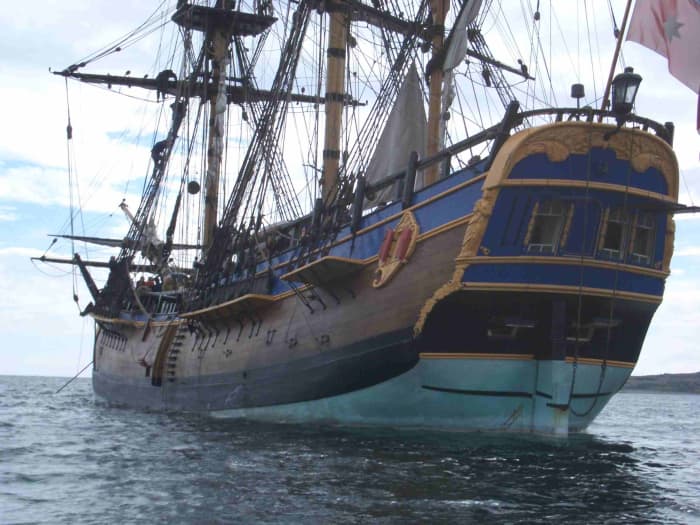

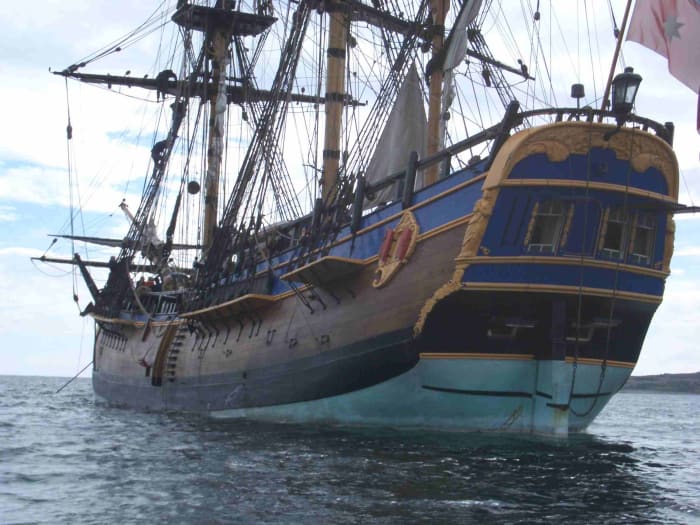

The full-size replica . 'ENDEAVOUR', Captain Cook's first ship was a Whitby Collier, or 'Cat', as suitable for inshore work due to its shallow draught as she was on the high seas across the Atlantic and around Cape Horn on her ocean-going debut

The full-size replica . 'ENDEAVOUR', Captain Cook's first ship was a Whitby Collier, or 'Cat', as suitable for inshore work due to its shallow draught as she was on the high seas across the Atlantic and around Cape Horn on her ocean-going debut

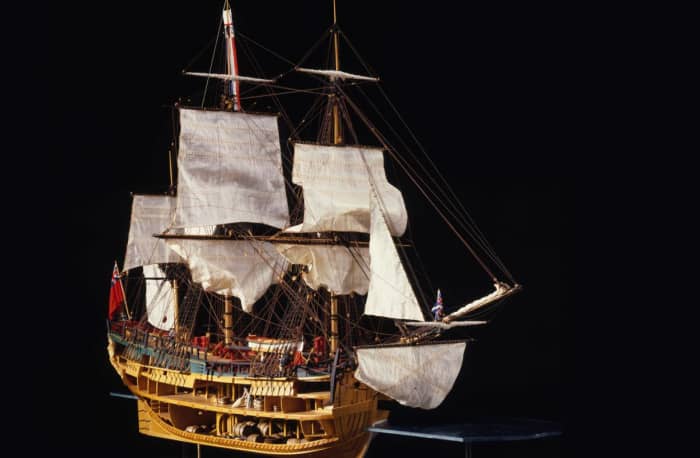

This cutaway model of HMS 'Endeavour' Bark is exhibited in the National Maritime Museum at Greenwich, London, and shows the below decks arrangement of stowage, crew and officers' accommodation

This cutaway model of HMS 'Endeavour' Bark is exhibited in the National Maritime Museum at Greenwich, London, and shows the below decks arrangement of stowage, crew and officers' accommodation

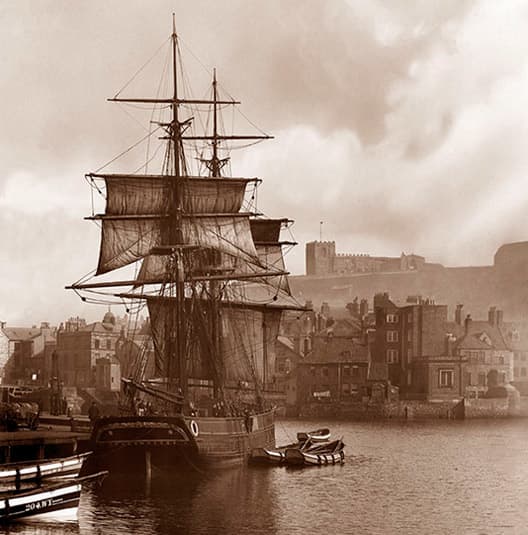

A Whitby 'Cat' cabled in Whitby Harbour at the turn of the 20th Century, taken by the well-known local photographer Frank Meadows Sutcliffe

A Whitby 'Cat' cabled in Whitby Harbour at the turn of the 20th Century, taken by the well-known local photographer Frank Meadows Sutcliffe

[There is a full-size replica based in Australia, a motorised half-size replica that takes tourists on a round trip from Whitby Harbour, a short way along the coast and back; and there is a 25ft long replica complete with masts and rigging reinstated to display in the Cleveland Centre, Middlesbrough - see also below. Captain James Cook was born 27th October, 1728 to James Snr and Grace Cook - a local lass - at Marton-in-Cleveland. His father, a land labourer at the time came from the Scottish Borders region. With an extrraordinary grasp of mathematics, young James Cook would later use his talent for navigation and naval chart-making from the time of England's war with France in the later 18th Century until his death on the rocks in Kealakekua Bay, Hawaii on 14th February, 1779. His remains were buried nearby 22nd February, overseen by Lieutenant William Bligh].


Background to the 'Cats' chosen by Capt. Cook for his Pacific voyages

William Falconer's 'Dictionary of the Marine' dated 1769, corrected by Thomas Cadell in 1780 defines 'Cat' as a ship employed in the coal trade, formed from a Norwegian model. The vessels are distinguished by a narrow stern, projecting quarters, a deep waist, and by having no ornamental figure on the prow (which was generally snub-nosed and vertical or square to the water.

Being familiar with the vessels from working the colliers between Newcastle-upon-Tyne and London, as well as across to Norway and the Baltic for the timber trade, Cook chose the Whitby 'Cat' for its sound construction and its ability in shallower waters, mindful that he might need to close on the shore for charting purposes.

'The Earl of Pembroke', Cook's first choice for exploration in the Pacific, had been built at Fishburn's Yard, Whitby and was refitted for the Royal Navy, renamed 'Endeavour'. A vessel designed for difficult weather conditions and of shallow draught, 'Endeavour' was ideally suited to Cook's purpose in being able to be sailed closer into shore. This capacity was demonstrated amply where the 'Cats' were used on coastal work to the alum workings near Whitby. Channels had been blasted in the rock to take the reduced keel, enabling crews to moor at high tide without the vessels 'keeling over' (no pun intended). When the sea went out the angle they settled at was slight. 'Endeavour's' design was a life-saver when she struck the Great Barrier Reef. A normal keeled ship would have been holed beyond redemption, whereas 'Endeavour' was towed into Botany Bay within the reef and patched up sufficiently to get the crew to Batavia in the Dutch East Indies.

On his second voyage Cook selected the ships 'Marquis of Granby' (launched 1770) and 'Marquis of Rockingham' (also launched 1770). He also selected a pair of John Harrison's sea clocks to test for himself, to establish longtitude in uncharted waters.The two ships were renamed 'Resolution' and 'Adventure'.

For his third and last - fateful - voyage Cook took 'Resolution' again and another ship, 'Diligence', renamed 'Discovery'.

Trial by Power - a lone 'Cat' ringed by modern vessels

Whitby Harbour very early in the 20th Century with another 'Cat'. Steam was overtaken by diesel,  Yet the 'romance' of sail lingers. Cook rounded the 'Horn' more than once when circumnavigating the globe

Whitby Harbour very early in the 20th Century with another 'Cat'. Steam was overtaken by diesel, Yet the 'romance' of sail lingers. Cook rounded the 'Horn' more than once when circumnavigating the globe

'Endeavour' was typical of Cook's refurbished collier ships...

When assigned on the voyage to take Joseph Banks to Tahiti to observe the passage of Venus she carried ten four-pounder guns that measured 6'-0" (180 cms) along the breech, weighing 11-12 cwt, positioned amidships on the lower deck five to a side. She was also fitted with twelve swivel guns, 2'-10" (85 cms) long, to be loaded with shot for short-range firing, i.e., ship-to-ship or at smaller vessels almost alongside, should the occasion arise.

Ships such as Cook's on 'detached' (non-military) duties, that encompassed voyages of discovery or scientific purpose displayed the red ensign. She was to all intents and purposes on civilian, rather than on naval duty. This flag denoted also vessels undertaking merchant services. Ships on military or blockading duties displayed the white ensign. In either case the Union Flag of the time occupied the top left quarter of the ensign, minus the saltire (diagonal red cross) of St Patrick which was added only in 1801 at the height of the Napoleonic War.

A look into the past...

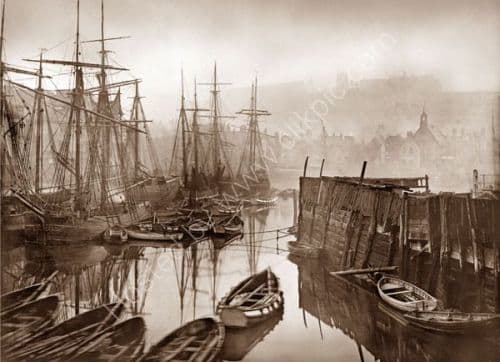

... Of long summer evenings, cold winter chill on the still harbour waters of Old Whitby. This is along the quayside looking seaward, with St Mary's church just visible near the clifftop (right) next to the ruined abbey

... Of long summer evenings, cold winter chill on the still harbour waters of Old Whitby. This is along the quayside looking seaward, with St Mary's church just visible near the clifftop (right) next to the ruined abbey

... At the Sutcliffe Gallery, 1 Flowergate, Whitby, YO21 3BA

To really appreciate the effect of an old harbour like Whitby, with its ships tied to buoys or at the quayside, you need to see old - sepia - photographic images taken at the time. For those readers unable to visit the Sutcliffe Gallery at the harbour end of Flowergate visit www.sutcliffe-gallery.co.uk and drool over photographs taken by the master, Frank Meadows Sutcliffe in the later 19th Century. Not only in Whitby, but along the North Riding coast between Saltburn and Scarborough. you can see the fishermen, their wives and families in villages such as Staithes where James Cook first hankered after a life at sea. You can see the 'herring lassies', Scots' girls who travelled south with the herring fleet, gutting and readying the fish for sale. More, see acres of masts in Whitby and Scarborough harbours with their herring frames - ever had smoked kippers or bloaters for breakfast, with a nob of butter, maybe fried tomatoes so 'tame' the taste of the smoked herrings? -, the Yorkshire Cobles, fast fishing boats with single sails putting out to sea early in the morning to bring in the lobster catch in villages and small towns such as Runswick Bay or Robin Hood's Bay. For those of you able to make it, there's lots of atmosphere even now, and the promise you made your taste buds!.The screams of gulls wheeling over the harbour - watch out though, don't wave your food around in the air when you chat amongst yourselves. Those herring gulls have sharp eyesight, and are quick on the uptake.


Captain Cook's 'Endeavour' takes pride of place in the Cleveland Centre, Middlesbrough...

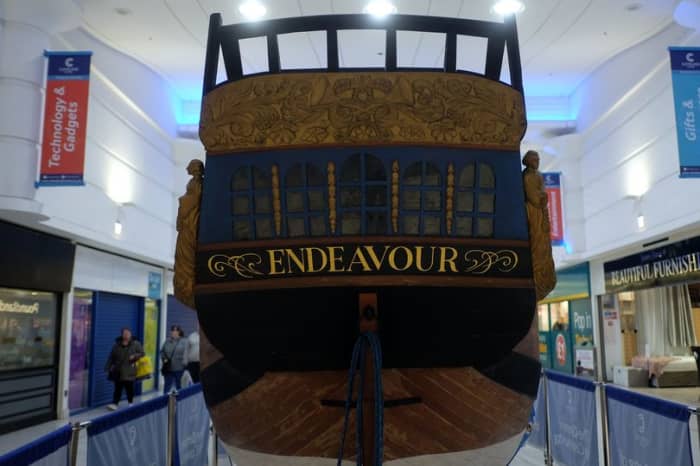

The afterdeck and stern superstructure of 'Endeavour'. The windows are those of the captain's cabin.

The afterdeck and stern superstructure of 'Endeavour'. The windows are those of the captain's cabin.

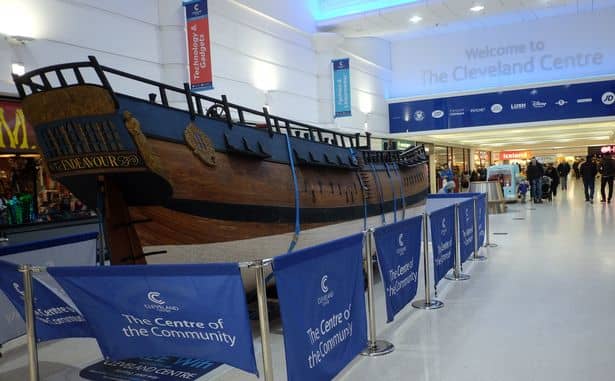

The starboard (right) side of the vessel prior to the masts being re-erected and the complete replica being re-hung from ceiling joists

The starboard (right) side of the vessel prior to the masts being re-erected and the complete replica being re-hung from ceiling joists

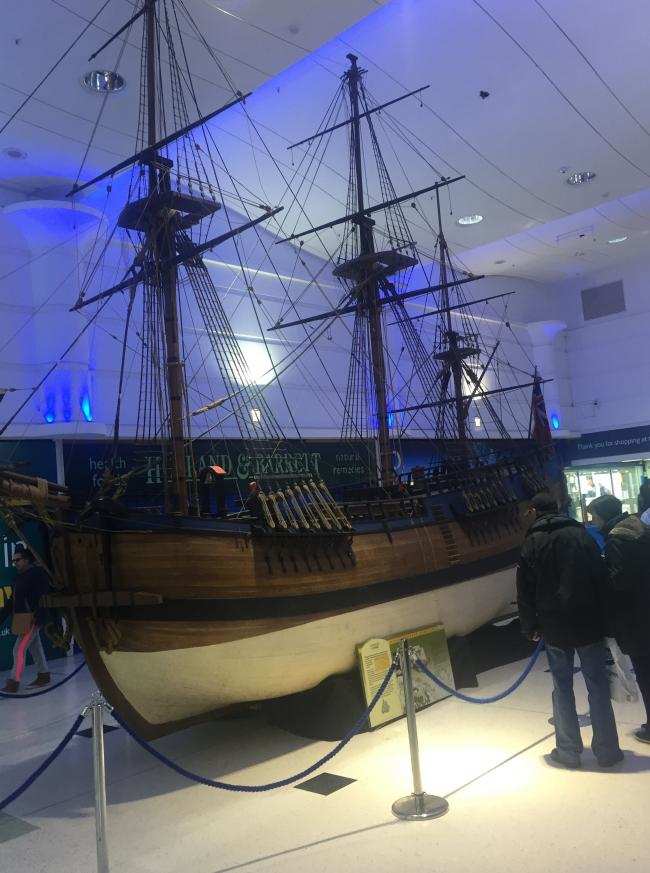

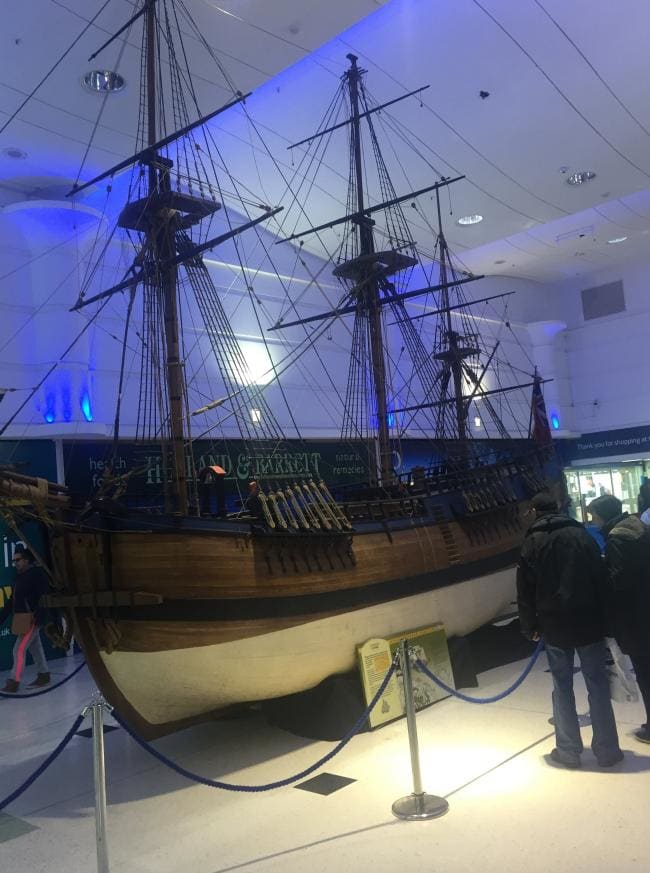

The completed replica, with masts and rigging being admired by visitors - wilol it be safe from vandalism?

The completed replica, with masts and rigging being admired by visitors - wilol it be safe from vandalism?

The replica was returned to its original 'home', re-nstalled on Thursday, 20/th February, 2020.

Previously suspended for about two decades in the Middlesbrough shopping centre, a major overhaul in 2005 saw it removed and kept in storage.

From gathering dust and cobwebs it was brought basck, set to welcome the 'Tour de Yorkshire' cycle race (the English 'leg' of the Tour de France). t hen it was put back in storage. The 1.5 tonne timber replica was on display again to enthrall the crowds. The masts only just passed beneath the Grange Road entrance before being positioned beneath its support brackets. Middlesbrough mayor Andy Preston, who'd announced on social media that he'd like to see the 'Endeavour' replica on display again was delighted,

"A great move by the Cleveland Centre. The model absolutely deserves to be seen by the public to celebrate Cook, argguably the world's greatest explorer, from our very own Marton. When I posted about it on Facebook recently there was a tidal wave of support from people across Middlesbrough and wider Teesside wanting the replica back on display. I and many others have fond memories of going up the glass lift to look down on it back in the 1980s and 90s".

Mr Preston added in glowing terms,

"Its return is a fantastic way for our town to mark the 250th anniversary of Cook and the 'Endeavour' reaching New Zealand and Australia on the first of his truly epic journeys. I'm sure the replica's comeback will prove hugely popular. well done to Cleveland Centre and all involved in its welcome return"

The 'Endeavour' replica is around 25ft long, as tall again with masts and rigging in place. It was first seen, suspended from ceiling brackets in the Cleveland Centre from 1984. Before being retu rned temporaríly in 2016 the model had been painstakingly dismantled and sored, first at the Captain Cook Birthplace Museum site in Stewart Park. More recently it had been in a unit on the Riverside Industrial Estate.

And now to the Coble...

LNER railway poster shows Yorkshire cobles drawn up on the South Bay sands at Scarborough

LNER railway poster shows Yorkshire cobles drawn up on the South Bay sands at Scarborough

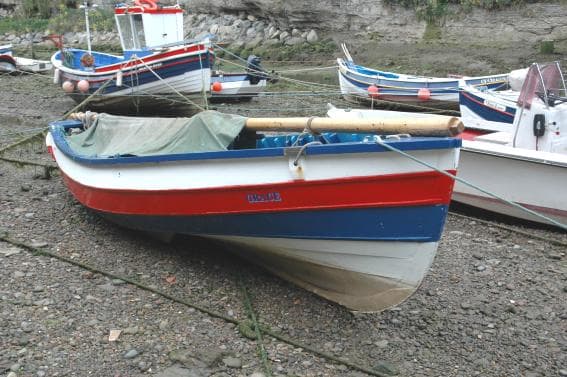

Yorkshire coble in the creek at Staithes, low tide  - the vessel's 'heritage' is shown in the sleek lines of its prow and 'waistline'

Yorkshire coble in the creek at Staithes, low tide - the vessel's 'heritage' is shown in the sleek lines of its prow and 'waistline'

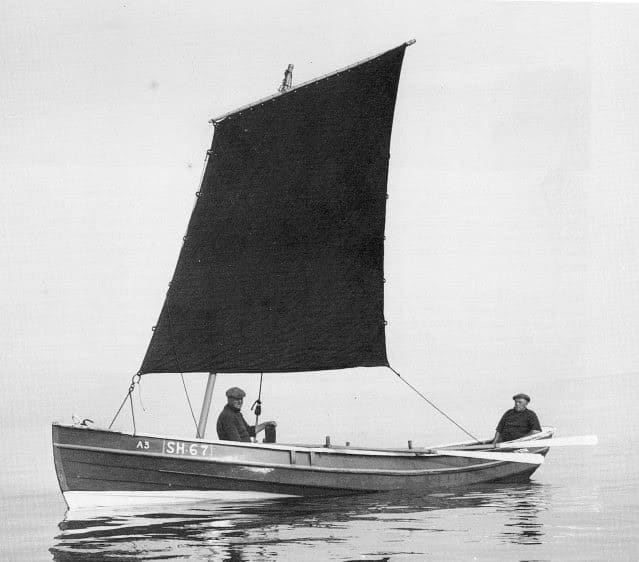

Early view of a coble under sail. These vessels were engine powered from post-WWII years

Early view of a coble under sail. These vessels were engine powered from post-WWII years

With their Viking beginnings...

Originally only under sail - usually a standing lug - most cobles still had sailing gear aboard but by the 1950s many were motorised, the shaft and propeller running in a 'tunnel' protected by twin bilge keels (or drafts) astern.

In general sailing gear has been removed, leaving space for a forward wheelhouse. They keep the deep 'forefoot' however, pronounced sheer and noticeable tumblehome waist. Twin bilge runners (drafts) run right aft. Boats would be custom-built for local conditions, the design varying marginally from place to place and builder. Modern boats often have a small wheelhouse forward, a half-deck to shelter the engine and gantries to support line haulers.

Although nowhere near as many cobles operate from Staithes, most are moored in the creek by the footbridge, although some are moored beyond the harbour wall. Few are still registered in the fishery, many now being in private hands as leisure vessels. At Robin Hood's Bay they are virtually non-existent. Some modified ones are still based at Whitby and Scarborough, and others are scattered between Redcar and Bridlington or Hornsea.

Fishing was, and still is inshore, generally long line, or hunting for crab or lobster. Summertime trips around the bay or fishing trips for visitors supplement income for some. These days boats are kept ashore on lorry-wheeled launching trolleys or cradles. Once horses were used for launch and recovery, both for fishing vessels and lifeboats. Tractor haulage has been well established since the 1950s. On bringing in cobles the bows are swung into the incoming surf, ready for the next launch and the boats are drawn out stern first.

Variants - modified Cobles

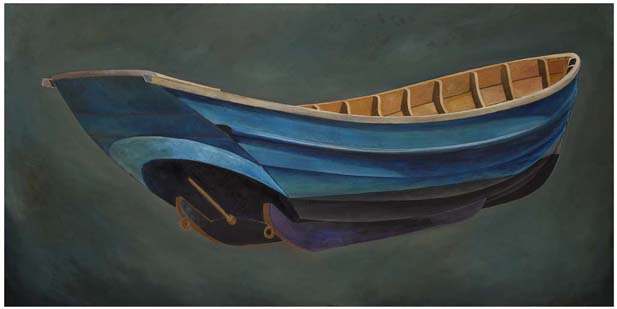

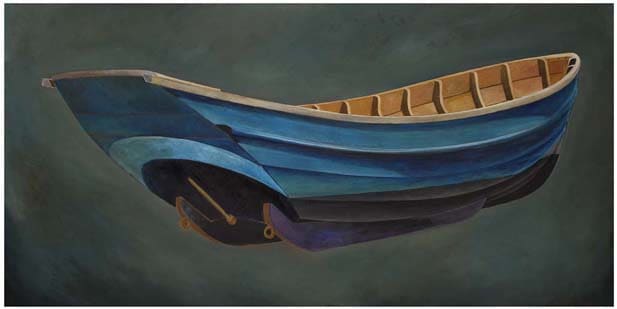

Diagrammatic view of a coble seen from the stern. Based on the Norse ship design, the vessels were once double-ended, only latterly built with squared-off sterns. This vessel has been built to have a motor attached

Diagrammatic view of a coble seen from the stern. Based on the Norse ship design, the vessels were once double-ended, only latterly built with squared-off sterns. This vessel has been built to have a motor attached

View of Filey cobles drawn up at the head of the landing

View of Filey cobles drawn up at the head of the landing

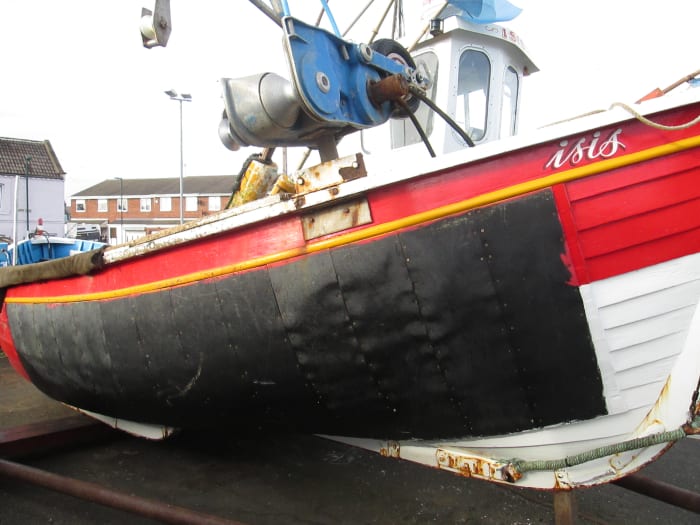

A much patched up Coble with cab and net winch on Fisherman's Square, Redcar (off Lord Street, behind High Street East)

A much patched up Coble with cab and net winch on Fisherman's Square, Redcar (off Lord Street, behind High Street East)

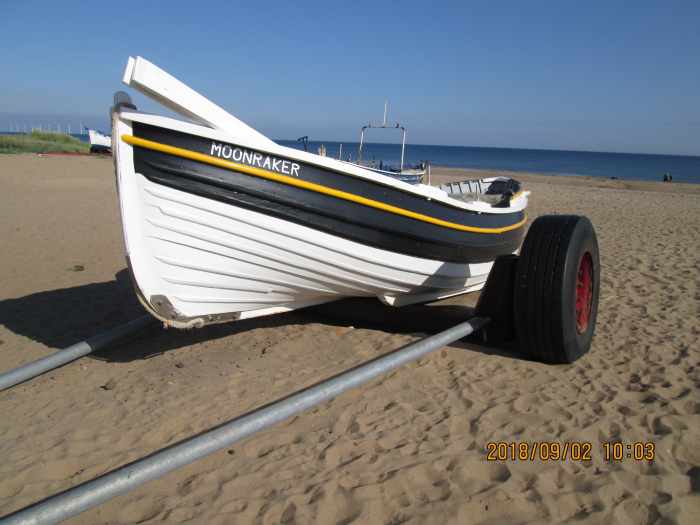

Not far south, a coble has been drawn up on its trailer onto the sands below Marske village

Not far south, a coble has been drawn up on its trailer onto the sands below Marske village

See description below

See description below

David Brandon's look at the Yorkshire Coast from north to south, inlets known as 'wykes', wide bays, river mouths and creeks such as at Staithes with its steep cliffsides. The broad sweep of Bridlington's or Hornsea's seafront, Filey Brigg and Flamborough's North Landing, Scarborough's two bays with its ruined castle on the promontory that divides the vista. Whitby's River Esk accessed from between the twin beacons with the abbey on the east cliff, Captain Cook's statue and whalebone arch on West Cliff...

Published 2010, The History Press Ltd., ISBN 978-0752457521

The North Landing, Flamborough with its cobles drawn up, ready for launching

The North Landing, Flamborough with its cobles drawn up, ready for launching

Cobles still registered for commercial fishing are usually manned by individuals or pairs, the amount of space aboard being cramped once nets or pots are stowed aboard for the day's work. You can usually see them leave early in the morning, to return in the afternoon with their catch. Watch them from the clifftops, skirting the coast on the way to and from their fishing grounds. Rough weather and strong currents on the coast can severely restrict working hours, and income in autumn and winter can be a fraction of the summer's takings. Take a walk along the seafront anywhere from Redcar to Hornsea and buy fish, crab or other shellfish direct from the boats. Or at Whitby, Scarborough, Filey and Bridlington visit one of the seafront cabins and buy a coffee and a crab sandwich or whatever you fancy from a wide range of filled rolls and white fish.

*I tend to use my parking disc (see local post offices and some shops, free parking is for two hours) to park near the castle at Scarborough and walk down the steep hill to the harbour to take a look around the fish quay. A new lifeboat house is under construction close by, with official opening scheduled for spring/early summer, 2016.

© 2015 Alan R Lancaster
