The Gemini Embossing and Die Cutting Machine-Tips and Ideas

Professional scrapbook artist, paper crafter, and author, I have taught people how to make family memories into legacies for 20 years.

The Gemini is both an embossing machine as well as a die cut one as well

The Gemini is both an embossing machine as well as a die cut one as well

About The Gemini

The attraction to the Gemini Bossing And Die cutting machine has been startling considering it has only been available for a short time. It is manufactured by Crafter's Companion.

The first feature to this machine is that it is a "stand alone" die cut and embossing unit. That means that you do not need a computer. It does all it's tasks without one.

There is only one connection from the Gemini to a wall socket. The connection is in the back of the machine.

There are three models to chose from. The original Gemini has the largest platform of the three models. The Gemini Mini is smaller, but has a good sized platform. The Gemini Go is the smallest and most portable of the models.

All of these models can use most standard sized die cuts and embossing folders.The only exception that I have found is with the older padded Cuttlebug die cut folders.

There is a reverse button that allows you to control how far the plates go into the machine. This saves you time if you are only cutting a few

It is also faster and quieter than most machines.

It will cut almost anything from vellum to heavyweight fabric. Because of the higher pressure than most machines, I am able to cut multiple layers of materials in one sweep.

It comes as a package which contains the Gemini, clear cutting platform, base cutting platform, metal cutting platform, magnetic shim, plastic shim, rubber embossing mat, 3 D die folder, 3 metal dies, user guide, power cable



What Can The Gemini Cut?

The best feature of the Gemini is that it can cut so many materials seamlessly. Here are a few of the items that it does cut:

  1. Layers of fabric
  2. Felt
  3. Burlap
  4. Denim
  5. Glitter paper
  6. Card stock
  7. Mirror Card
  8. Adhesive foam
  9. Adhesive vinyl
  10. Stencil Film
  11. Balsa wood
  12. Craft metal
  13. Leather
  14. Chip board

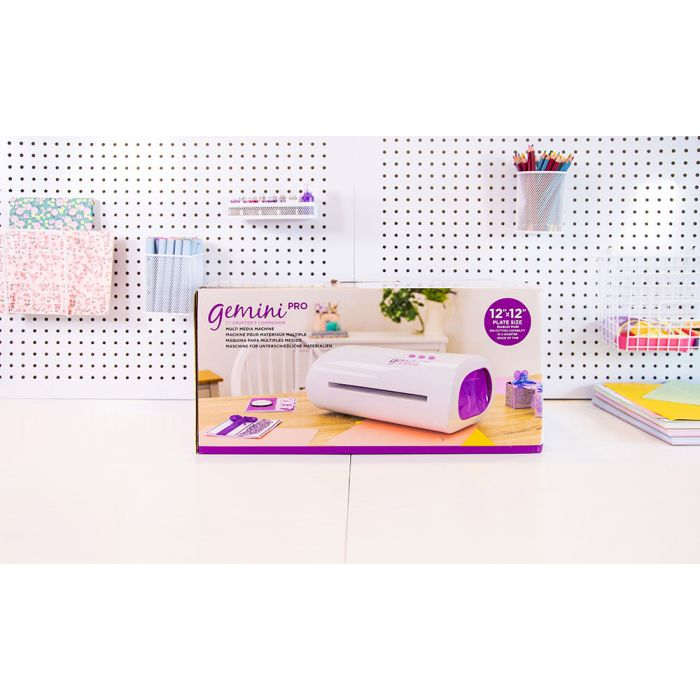

The Gemini Pro

With an extra-wide opening and oversized platforms, the Gemini Pro provides edge-to-edge cutting, perfect for large materials such as thick card stock, vinyl, foil and fabric

With an extra-wide opening and oversized platforms, the Gemini Pro provides edge-to-edge cutting, perfect for large materials such as thick card stock, vinyl, foil and fabric

The Gemini Pro

The Gemini Pro is the newest model from Crafter's Companion. It came out in January 2021 and is now widely available.

So, what makes this model different and worthy of your consideration?

The first thing is its size. The plates are a large 12" x18". This means that you will be able to cut more projects on one pass. It also means that you can put through standard scrapbook paper of 12" by 12".

The second feature about this product is the opening within the machine is larger which means thicker projects will be accepted and processed.

You will be able to craft larger projects than before.

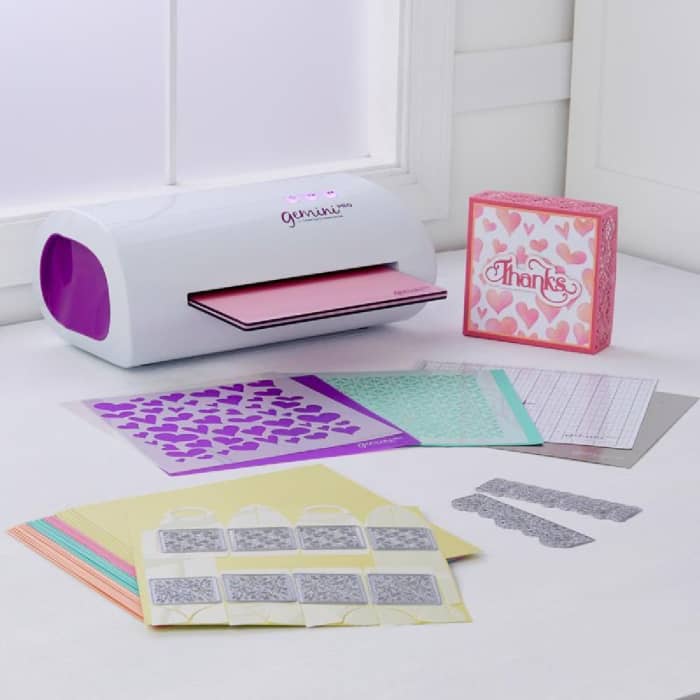

What Comes In The Package?

  • The Gemini Pro Die Cutting Machine
  • Power Cord
  • 12"x 18" Gemini Pro Clear Cutting Plate
  • 12"x 18" Gemini Pro Metal Cutting Plate
  • 12"x 18" Gemini Pro Rubber Embossing Mat
  • 12"x 18" Gemini Pro Magnetic Shim
  • 12"x 18" Gemini Pro Plastic Shim
  • An instruction Booklet
  • 12"x 18" Gemini Pro Plate Storage Bag
These are the accessories that are used to cut and emboss projects with the Gemini

These are the accessories that are used to cut and emboss projects with the Gemini

Standard Gemini

This was the original Gemini Cutting and Embossing Machine, The plates or platform area is 9" by 12.5 ". That made me very happy. Because it will cut multiple dies and embossing folders at the same time.

For a big machine with a very high power motor, it takes very little space. I keep mine on a small side table. The actual size of the machine is 5.6 inches high, 14 inches wide, and 7.7 inches deep. It weighs 15.23 lbs. Basically made to be a machine for your craft room.

It features edge to edge A4 cutting, pause, resume and reverse buttons, enough space for multiple dies

It features a pause, resume and reverse button.

Pass through time is about 16 seconds.

You will need space behind this machine to allow the plates and shims to go all the way through.

What's In The Box?

  • Gemini Machine
  • Clear Cutting Plate x 2
  • Metal Cutting Plate
  • Magnetic Shim
  • Plastic Shim
  • Rubber Embossing Mat
  • Ornate Lace 3D Embossing Folder,
  • Hexagons Multi Media Dies
  • Floral Frame Dies
  • Blossoming Borders Dies
  • Flourishing Elements Dies
  • User Guide
  • Power Cable


The Gemini Junior

This machine is the compact version of the full sized Gemini

This machine is the compact version of the full sized Gemini

The Gemini Junior

The Gemini Junior is the smaller version of the standard size. It has the same amount of pressure as the larger model. The only difference is that it is a smaller size and the plate area is smaller. The plate area will cut edge to edge. The size is 6" by 8 7/8".

The machine itself weighs 10.6 lbs . The actual dimension of the machine is 5.4 inches high, 10.6 inches wide and 10.7 inches deep.

What's In The Box

  • Gemini Junior Machine
  • Clear Cutting Plate x 2
  • Metal Cutting Plate
  • Magnetic Shim
  • Plastic Shim
  • Rubber Embossing Mat
  • 3D Embossing Folder
  • Die Set
  • User Guide
  • Power Cable

Pass through time is 10 seconds.

This machine is perfect for crafters with less space or those in apartments.

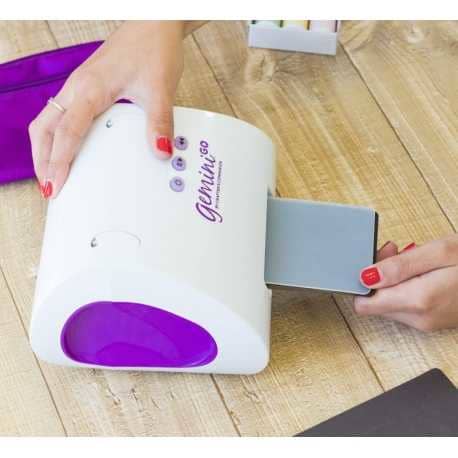

The Gemini Go

This is the smallest but the most portable of the three models. That means that you can virtually pick it up and take it anywhere. But the features are the same from the standpoint of the motor and operation. There is a 3 1/8 " opening on a side-to-side platform. It comes as a package with the plates, embossing mat, and the corresponding shims.

The platform for this model is 3" wide by 6 " long.

The machine is 4,45 inches high, 6.38 inches wide, and 7.72 inches deep. It weighs 3.97 lbs.

Pass through time is 14 seconds.

What's In The Box?

  • Gemini GO Machine
  • Clear Cutting Plate x 2
  • Metal Cutting Plate
  • Magnetic Shim
  • Plastic Shim
  • Rubber Embossing Mat
  • User Guide
  • Power Cable


The nice thing about this model is that you can put it in its own accessory bag (a separate purchase) and take it anywhere.

The Gemini booster cable and power pack make this a truly portable model. This power pack is a separate purchase.

The Gemini Midi is the larger of the two manual machines

The Gemini Midi is the larger of the two manual machines

Gemini Midi

The Gemini Midi is the larger of the two manual machines in this line. No electricity is used so that you can use it anywhere and it is very portable.

The Midi’s 6″ x 9″ die-cutting slot is incredibly versatile and can be used with metal dies, embossing folders, and cut and embossing folders so there really is no limit to where your creativity can take you!

It comes with a plastic shim and a plastic folder.

This is the smaller of the two manual machines

This is the smaller of the two manual machines

Gemini Mini

This is the newest Gemini n the market. What's new with this model? Well, for one thing, it is a hand-cranked machine. No electricity is needed.

It is small and compact which makes it very portable.It measures approx. 7.25"L x 2.75"W x 4.5"H. It weighs about 2.3 pounds. It is small but will cut and emboss beautifully.

What's In The Box?

  • Gemini Mini Machine,
  • Plastic Shim
  • Plastic Folder

The cost is about $40 which makes it very affordable.

Gemini Mini Resources

The Gemini comes is a package with everything you need to get started right away. You get all the accessories and some dies so that you can make projects right out of the box

The Gemini comes is a package with everything you need to get started right away. You get all the accessories and some dies so that you can make projects right out of the box

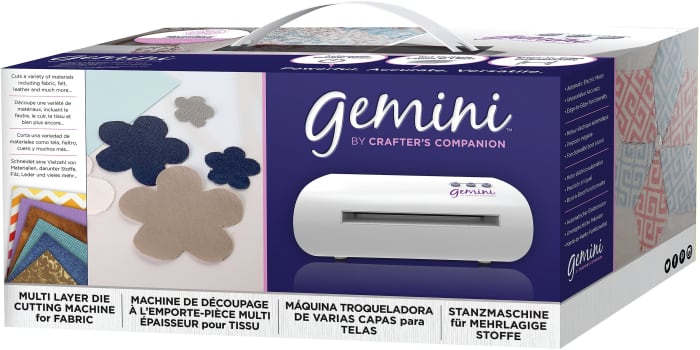

Gemini For Fabric

This Gemini is built especially for those who quilt and use fabric. It is an automatic die cutting machine that cuts fabric, leather, felt and much more.

This model is different from other models of the Gemini. It has a wider opening than the other models. It also features oversized platforms to cut fabric edge-to- edge up to 8.75x12.5 inches.

It is compatible with most metal dies.

It cuts multiple layers of fabric at the same time

This package contains one Gemini machine, two clear cutting platforms, one metal cutting plate, one plastic shim, Threaders Metal Cutting Dies (18 piece set), user guide, and power cord. US Plug. Use with 110 voltage only

There are special dies in shapes that allow you to cut pieces for your quilt and other projects.


Gemini Operating Buttons

There are only actually three buttons that are used in the operation of the Gemini. I love the simplicity of this machine.

The first button is the on/off button called the power button. You press it to turn it on. You will see the buttons light when the machine is in use.

The pause and resume button will cause the machine to stop till you hit the button to resume, or tell it to reverse with the reverse button.

Do not force platforms into the Gemini. In the event that the Gemini™ senses that the combination is too thick to run through the rollers, it will stop the forward motion and reverse automatically. Verify the platform combination before feeding it into the machine again. Also check that you are not trying to cut or emboss too many layers of material at one time.



Cutting Plates And Their Uses

You need two clear cutting plates, one for the top and one for the bottom, and these protect the contents of your sandwich and provide a surface for the die-cutting machine to press together.

Because of the high level of pressure in the machine, the cutting plates will naturally bow over time – this does not affect the performance of the plates or the machine, but you can reduce bowing on the plates by rotating and flipping them between each pass.

You will get two clear plates with your initial purchase. If you have to replace them, they come as single items in a package.

There will also be marks on your plates. That is normal wear. However, the plates will last for a long time. The marks will not hamper the use of your machine.

As you run the plates through the machine, there may be a cracking noise. That is also normal and does not affect the use, cuts, or embossing features.

Each machine size has cutting plates and shims adapted to that specific sized machine,

Cutting Plates For Double Sided Dies

There are special cutting plates if you are using double-sided dies. These do not come with your initial purchase.

Created from a thicker, clear plastic than a regular cutting plate, they will receive less damage, promising longevity.


They are made to withstand more pressure than are exerted when using these unique dies. You get two double-sided die-cutting plates in a package.

You will want to mark these with a permanent marker so that they are saved for this specific use.

No matter what cutting plates you are using remember to flip and rotate your plates on every pass. That way you will keep them working longer.

Using Gemini Plates

Shims And Their Use

When you are cutting very intricate dies, the use of shims helps you get the most amount of pressure. All of these shims and mats come in precise sizes to fit your specific Gemini model.

  • The Metal Shim-this is a shim that can be added anywhere in your sandwich to increase the pressure. When it is placed above the material you are cutting, you get a stronger cut. You’ll see a much more defined cut with this plate included in your sandwich.
  • The Magnetic Shim-This shim is best used under your die. It is used to hold your magnetic die in place. It has grid lines that make it easy to use.
  • The Plastic Shim-Protects your dies and materials when passing through the die cutting machine. It creating a better fit in the machine and a level surface. This shim is especially useful if you have a very detailed die or a thin die.
  • Rubber Embossing Mat- This mat creates a softer impact, allowing your dies to leave an imprint. You can actually emboss with your dies using this mat. Instead of applying enough pressure for the die to cut through the card or paper, it reduces the pressure to result in an embossed image or pattern

Always place the noncutting side of your die against the magnetic sheet. Place the paper against the cutting side of the die and secure it with washi tape. If you place the cutting side of the die against the magnetic shim, it will cut into the shim/ This is one common mistake in using the Gemini

For really thin dies, you can use a piece of paper between the plastic shim and the base cutting plate. This acts as an extra shim and adds more pressure to the cut.

If the die is extremely intricate, you may have to run it through the machine twice.

For simple dies, you should only use the standard sandwich. Adding extra shims will cause the cut to buckle or warp. It will also cause your plates to bow out.

Always flip and rotate these shims and mats to get the longest wear.

More Ideas About Warped Plates

Which Gemini Is Right For You?

ModelPlate /Shim SizePass Through TimeAverage Cost

Gemini Full Size

9" by 12.5 "

16 seconds

$188.08-$229.99

Gemini Pro

12" by 12" -12:" by 18" available seperately

Not avialable

$499

Gemini Junior

6" by 8 7/8".

10 seconds

$133.99-$179.95

Gemini Go

3" by 6 "

14 seconds0

$129.95

Gemini Midi

6" by 9"

Manual

Gemini Mini

6" by 3"

Manual machine

$40

Gemini For Fabric

8.75"by 12.5"

$190.78

Making Your Sandwich

The sandwich is the placement and configuration of your plates, in other words, how they are stacked. I always build my Gemini sandwich from the bottom upwards. You always start with the cutting plate first on the bottom and then build from there depending on the project that you are working on.

Sandwich for Dies (From the bottom-up )

  1. Clear Cutting Plate
  2. Material To Be Cut
  3. Die-Blade Side Up
  4. Black Magnetic Shim
  5. Frosted Plastic Shim
  6. Clear Cutting Plate

Double-Sided Die

  • Base clear cutting plate
  • Double-Sided Die Cutting Plate
  • Card/paper
  • Double-Sided Die
  • Card/paper
  • Double-Sided Die Cutting Plate
  • Top clear cutting plate

Thin Metal Dies

The exciting thing about the Gemini is the number of pieces you can cut with wafer thin dies. Depending on the material you are using, you can get any where from 5-7 cuts on one wafer thin die pass. Always make sure that the die is blade side up !

Thin Metal Die Sandwich (From Bottom To The Top)

  • Base Plate on the bottom
  • Plastic shim (Frosted Plate) on top of the base plate
  • Magnetic shim on top of the plastic shim. magnetic side up
  • The cutting die, blade (sharp side up), smooth side facing the magnetic shim
  • Material or paper on top of the magnetic shim
  • Clear cutting plate on top of that

Make sure to align the stack evenly. Feed the stack gently into the Gemini. Once the machine starts feeding the plates into the machine, release your hold.

Very Intricate Dies

One of the things that I love most about my Gemini is the ability to cut the most intricate dies perfectly every time. As long as you follow the correct sandwich guideline, you will get a perfect cut every time.

  • The base plate is on the bottom
  • Plastic shim on top of that
  • Magnetic shim next, magnet side up
  • The die is next, with blade or cutting side up, smooth side facing the magnet
  • Material or paper goes on top of the die
  • Metal cutting plate on top of that
  • Clear cutting plate goes on top of the metal cutting plate

Mixed Media Dies

  • Base plate on the bottom
  • Plastic shim on top of the base plate
  • Position the cutting die, blade side up, with the smooth side facing the Plastic Shim.
  • Material goes on top of the die- (up to 6 pieces of thin fabric)
  • Clear cutting plate goes on top of the material to be cut
  • Align the plates and materials
  • Feed into the Gemini


Embossing With Dies

One of the nicest features of the Gemini Die Cutting Machine is the ability to emboss using dies with just the addition of an embossing mat. You are making an investment with every die set you purchase. Why not get the most out of your money?

  • The base plate goes on the bottom
  • The plastic shim goes on top of that
  • Position the cutting die, blade side up, with the smooth side facing the Plastic Shim.
  • Place your Material on top of the die. Important: If you have just cut the die your Material will still be inside the die – do not remove it. Remove the Magnetic Shim and/or the Metal Cutting Plate, and continue as follows with your die in place:
  • The rubber embossing mat goes on top of the material
  • Place the clear cutting plate on top of the embossing mat
  • Align the plates and feed into the cutting machine
  • Once the machine has started running the plates, release your hold on the plates

Embossing With Folders

The versatility of the Gemini allows you to cut does and use embossing folders with the same machine

  • The base plate is on the bottom
  • Embossing folder with the material in the folder is placed on top of the base plate
  • The clear-cutting plate is on top

Carefully feed the sandwich into the machine.

If you are embossing very thin material (such as vellum or acetate), you can decrease the pressure by placing a piece of thin copy paper inside the embossing folder.

Cut And Embossing Folders

  • Base clear cutting plate
  • Metal cutting plate
  • Cut & embossing folder with card/paper inside
  • Top clear cutting plate

Three D Embossing Folder

  • Base clear cutting plate >
  • magnetic shim >
  • embossing folder with card/paper inside
  • plastic shim

Gemini Resources

What To Do If Your Gemini Jams

I have had my original Gemini ever since the first machine came out. I have been pleased with the performance of this machine.

But I know that I tend to use plates until they finally get so warped that the machine may jam. Or I have done a sandwich that was too thick or not right.

If your machine jams for any reason, here are a few suggestions that may help you solve the problem.

  1. Try holding the power button for at least 10 seconds. If the plates start to move, continue to hold the button.
  2. Check to make sure that the power cord is in the slot. If that comes loose in the middle of a run, the machine will stop. Plug the power cord in. Restart the machine
  3. Try holding the pause button for at least 10 seconds.
  4. Try holding the power button and the pause button at the same time.
the-gemini-embossing-and-die-cutting-machine-tips-and-ideas

Gemini Foil Press

This is the newest addition to the Gemini family of craft machines. It works with the Gemini Junior and the full sized Gemini with an adapter plate. ( the adapter plate is not included in the bundle and must be purchased as a separate item. It can only be used with these models.

It is generally sold as a package for in the vicinity of $180 plus shipping depending where you purchase it.

The bundle includes a base plate station, the foiling platform, a metal shim, a top plate, a silicone mat, magnetic tweezers, 2 finger grips, a roll of foil, power cord, foil press stamp dies, foil press stamp n cut dies, manual and warranty papers. ( bundles may vary depending on where you make your purchase)

Features include a built in timer. It has even temperatures throughout the plate. It a;so features an auto shut off.

It can foil the following items:Foil a host of materials, including: 300gsm card stock, 350gsm card stock, 300gsm pearlescent card stock, 135gsm vellum, 250gsm mirror card stock, 250gsm glitter card stock, 0.15gsm acetate, faux leather, cotton fabric (including denim), satin ribbon, burlap, organza ribbon and chipboard

Gemini Foil Press Resources And Information

Caring For Your Gemini Machine

There really is not a lot of maintenance for these die-cutting and embossing machines. Here are a few tips:

  • If you’re running a cutting plate through your machine more than once, you’ll need to flip the plate each time to prevent bowing.
  • Always use the correct sandwich or plate configuration that is recommended by the machine manufacturer, otherwise, you could cause damage to your machine.
  • Never force your plates through!
  • Try to die cut away from the center of your cutting plates, as this is where the weakest amount of pressure is.
  • Make sure you clean your machine periodically. Removing small bits and dirt will help the performance of your die-cutting machine.

© 2018 Linda F Correa

What Is Your Experience Regarding The Gemini?

Linda F Correa (author) from Spring Hill Florida on April 21, 2020:

I know that is frustrating. It has happened to me. When the machine is on, try press the middle button. Continue to keep your finger on that middle button and see if that does the trick. You can also try to hold the power button and the pause button at the same time.

Most often this happens when the power cord is not all the way in.

Another reason is because the plates are warped.

Or you may have a sandwich not in the correct order.

If nothing works there, I would call customer service at Crafter's Companion.. Let me know how you make out.

roxana on April 20, 2020:

my gemini jammed how do i unjam it?

Related Articles
